10T Stainless Steel Reverse Osmosis Water Treatment

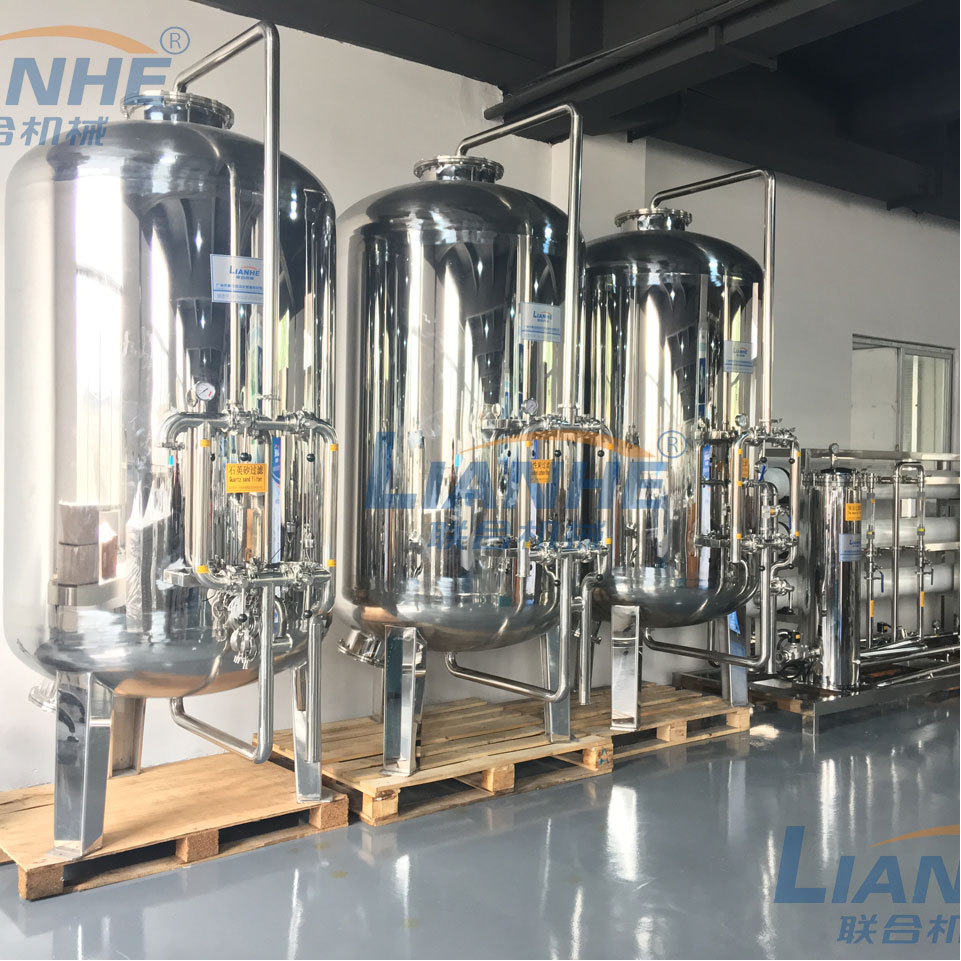

This integrated water purification system adopts a three-stage pretreatment process, consisting of a stainless steel sand filter unit, an activated carbon filter module, and a softening resin, which effectively removes large particle pollutants and suspended solids in the raw water. This optimized design significantly improves the inlet water quality of the reverse osmosis (RO) membrane, while completely removing residual chlorine and odor compounds to improve water quality.

The core purification technology uses advanced low-pressure composite membranes made in the United States, and the desalination rate of a single membrane element is as high as 99%, reaching a professional level. The integrated high and low pressure protection devices imported from South Korea ensure safe and reliable operation of the system with zero downtime risk. The final water always meets the national pure water quality standards and has excellent purity and tast.

•

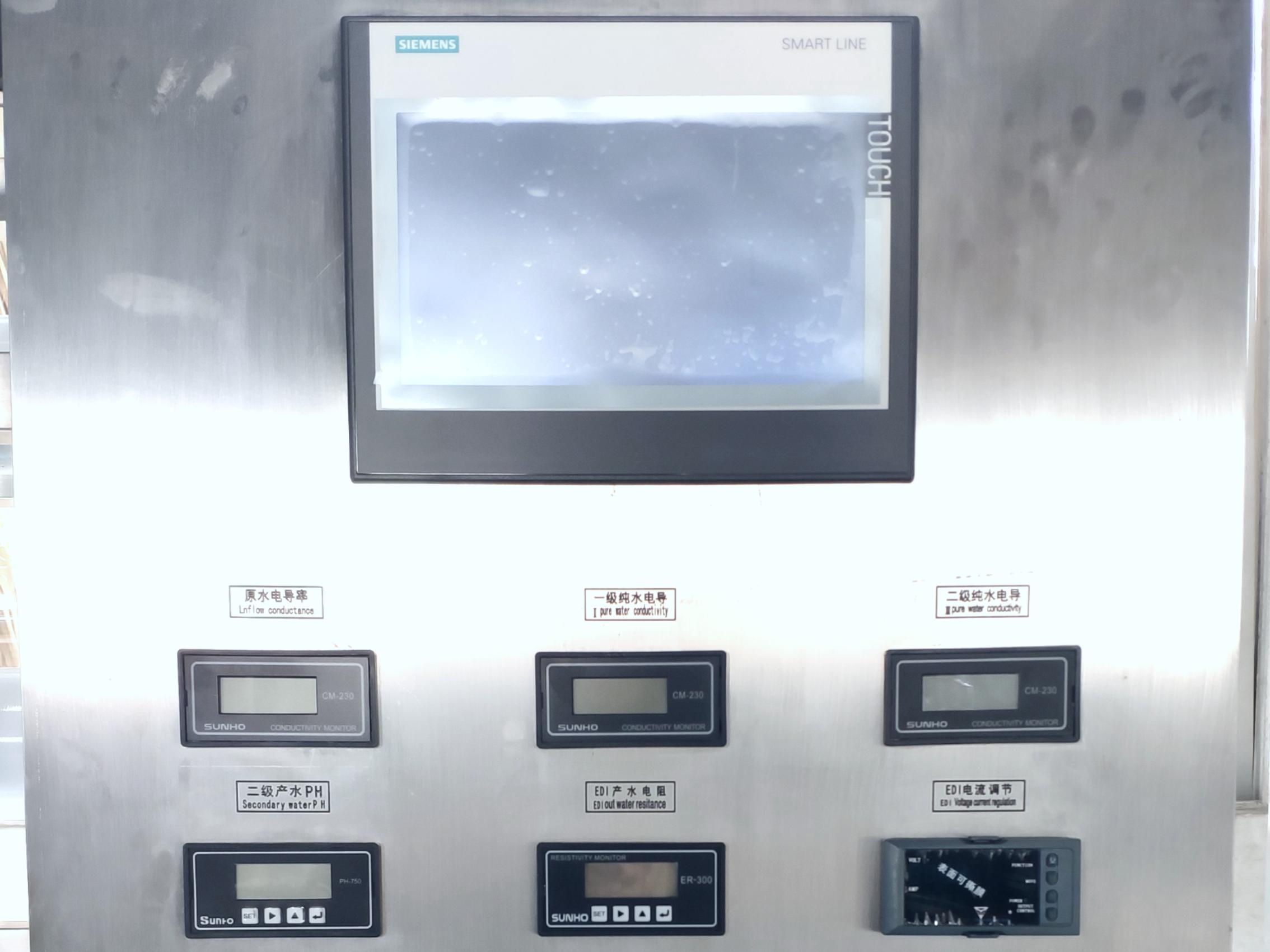

  Operation Panel

•

  EDI System

  Post-RO purification for high-purity demineralized water

•

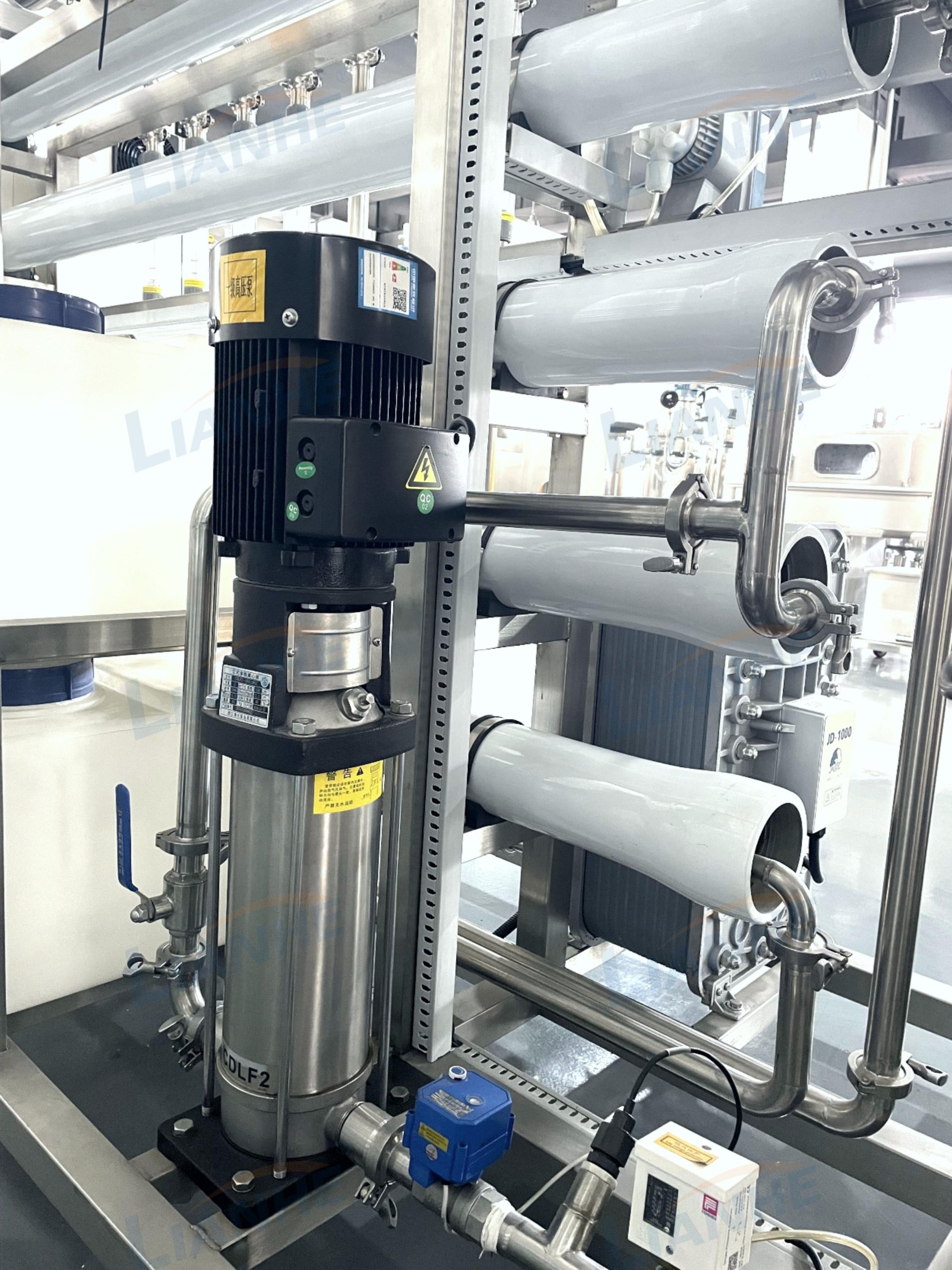

  High Pressure Pump

  Provides RO working pressure, ensures pure water output

•

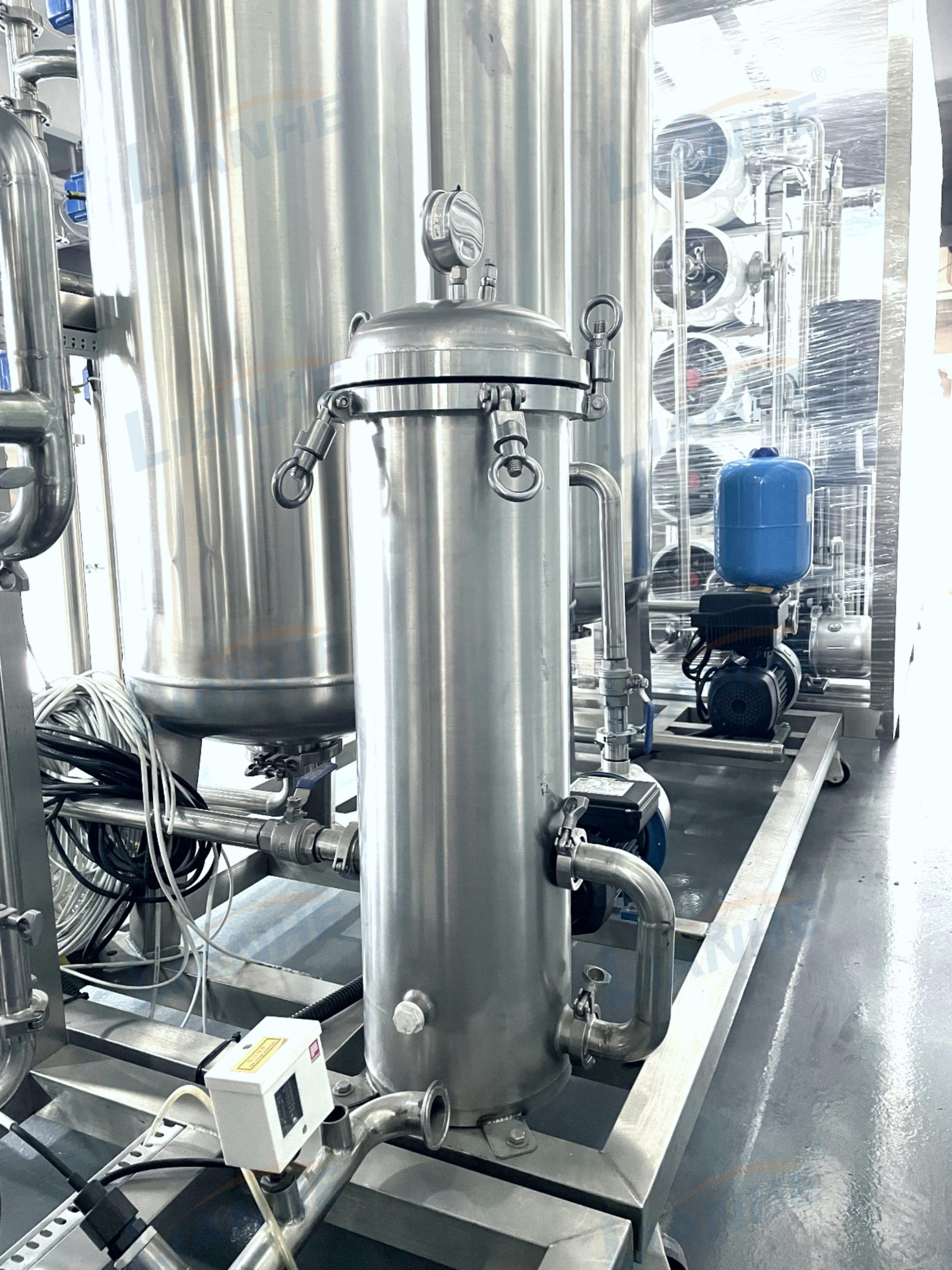

  Security Filter

  Prevent large particle, bacteria, virus into RO membrane

1. Model: LH-ROS10000;
2. Capacity: 10000L/hour;
3. Desalting rate: 98%-99.5%;
4. Filter: Quartz Sand, Active Carbon,
5. Filter Material: Stainless Steel;
6. Membrane: CSM from Korea;
7. Water-in conductivity(US/CM)≤300;
8. Support frame: 202stainless steel;

1. Electronic industry: pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
