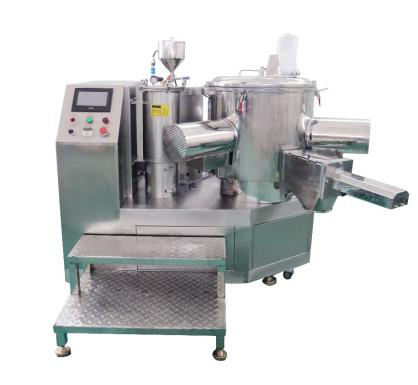

200L High Speed Powder Mixer

The high-speed powder mixer is an efficient grinding device suitable for fine powder processing of dry materials. It delivers fine and uniform pulverization results, features easy operation and convenient cleaning, and is widely used in the production of food, pharmaceutical, and chemical industries.

•

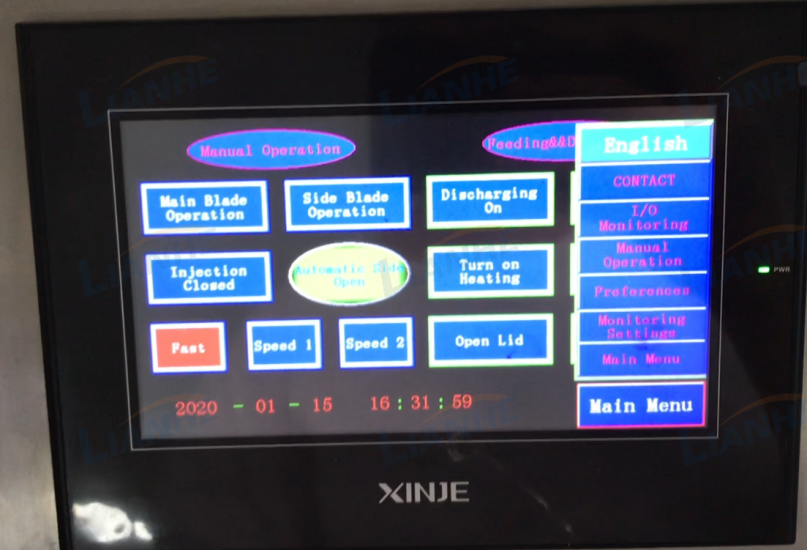

  Control Panel

•

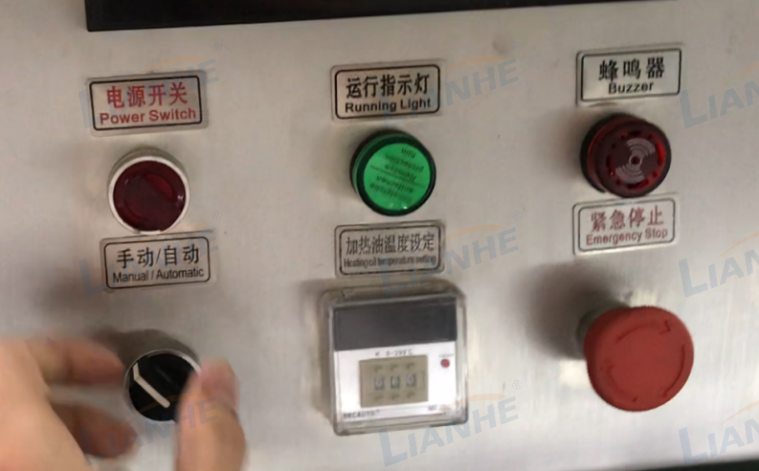

  Button Control

•

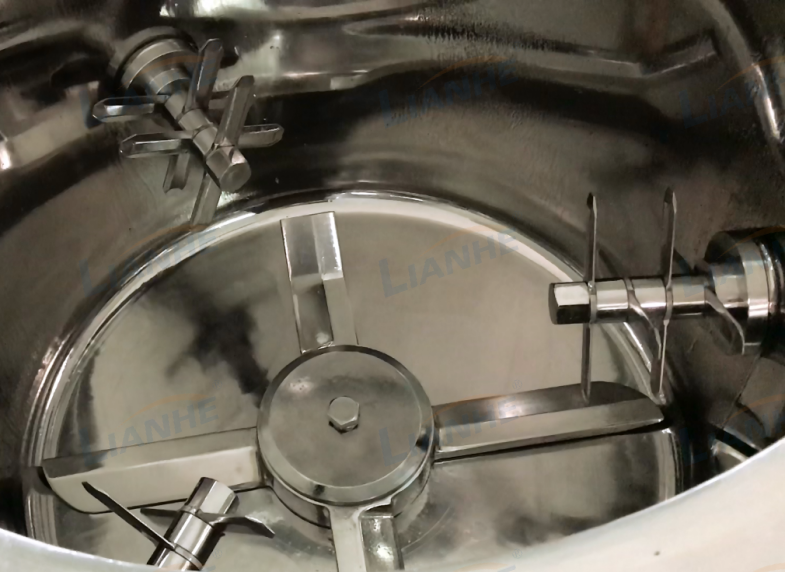

  Machine detail

•

  Air Assisted Atomizer from Japan

1. Model No.: LH-DF200
2. Control Way: PLC touch screen control
3. Voltage: AC 380V/50Hz/3 phase
4. Main Stirring Motor: 22KW, 0-2900rpm, DELTA converter
5. Side Stirring Motor * 3pcs: 2.2KW, 0-2900rmp, DELTA converter
6. Milling time, atomization time and oil pot temperature are adjustable
7. Pneumatic atomization injection: flow adjustable
8. Hopper capacity: 200L
9. Max powder milling capacity: 50kg
10. Pneumatic lifting cover, pneumatic discharging finished powder, with sight glass and scraper, adopted with Air Assisted Atomizer from Japan, double bottom blade, cover security switch.

1. The high-speed powder mixeris widely used for dry material grinding in the food, pharmaceutical, chemical, and feed industries.
