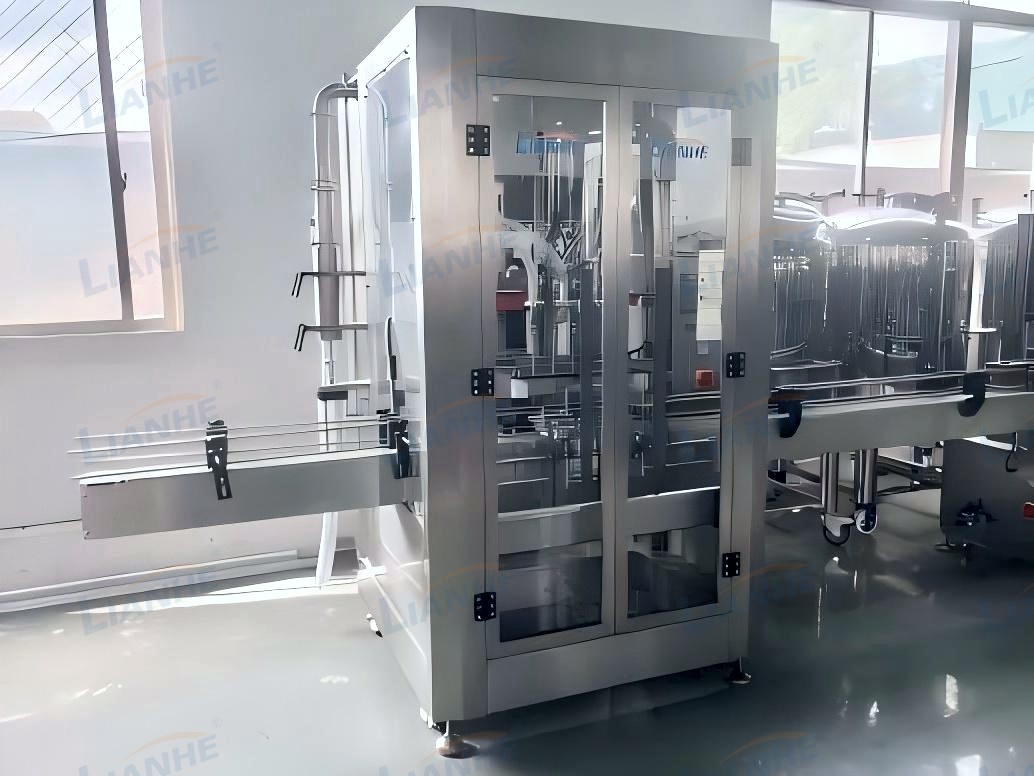

Automatic 4 Nozzles Filling Machine

This cutting-edge universal filling system combines adaptive intelligence with precision engineering to handle diverse fluid properties, from thick pastes and gels to water-thin solutions. Featuring a streamlined linear configuration, its servo-actuated volumetric dosing system achieves ±0.5% measurement accuracy through smart displacement control. The modular design enables rapid, tool-free format conversion between container geometries via preset configurations. A breakthrough self-detaching cylinder module revolutionizes sanitation workflows – automated cleaning cycles activate upon component detachment, eliminating manual disassembly. Compliant with stringent hygiene protocols (GMP), this multipurpose solution excels in packaging viscous cosmetic emulsions, low-density edible oils, pH-neutral detergents, and reactive chemical suspensions, significantly reducing downtime between production batches while preventing cross-contamination risks.

•

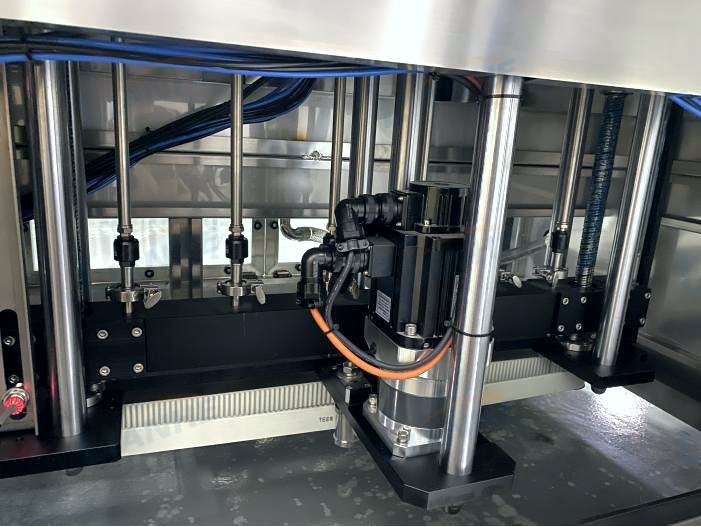

  Servo Motor Control Filling

  Servo-driven piston filling, ±0.5-1% accuracy, stable performance

•

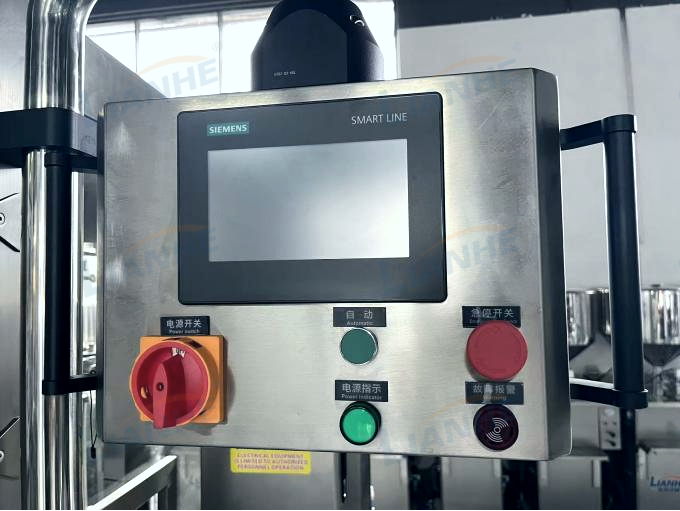

  Siemens Touch Screen Control

  Premium PLC touchscreen control system, easy/fast operation, precise filling

•

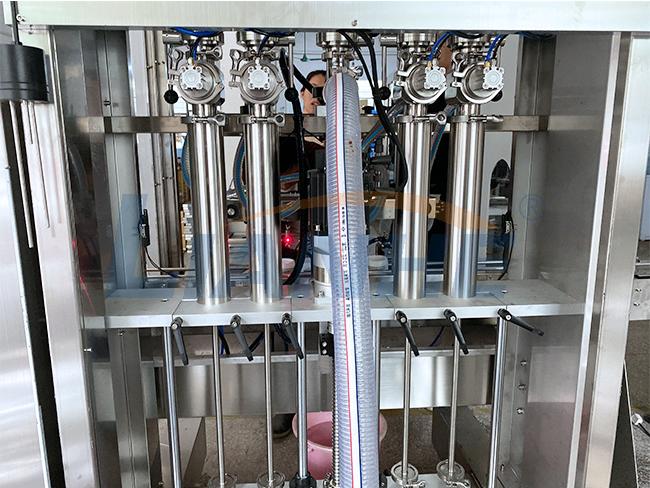

  Air Cylinder

  Adjust pressure/flow to precisely control piston displacement, speed, and force

•

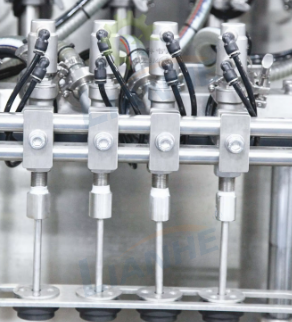

  4 Nozzles Filling Heads

  Custom no-drop nozzles (2-10 sizes), 316L stainless steel, easy assembly

1. Model No.: LH-HQ4
2. Filling volume: 5-150ml
3. Filling speed: 1200-1800 bottles / hour
4. Filling method: Metered servo motor piston filling
5. Material contact part: 316L stainless steel, PTFE (Teflon) for pistons
6. Filling accuracy: ± 5% -1%
7. Program control: PLC touch screen control system
   Other filling volume piston option: 20-250ml, 50-500ml,100-1000ml, 250-2500ml, 500-5000ml

1. Daily products: shampoo gel/detergent/conditioner/sanitizer etc
2. Food products: beverage/ketchup/sauce/condiments etc
3. Chemical products: Ink/dye/paint/ agricultural chemical etc
4. Cosmetic products: lotion/essence/oil etc
