Automatic Double-Head Lotion Rotary Filling Machine

This automatic filling and capping machine is PLC controlled and equipped with a user-friendly touch screen for easy adjustment. It is equipped with photoelectric sensors and proximity switches to ensure “no bottle, no filling” and precise operation. The system has an automatic shutdown function when abnormalities occur, and it issues an alarm and displays faults. The machine integrates counting, quantitative filling, capping and conveying in one, achieving seamless connection. The machine has a high degree of automation, large production capacity, efficient and reliable performance.

•

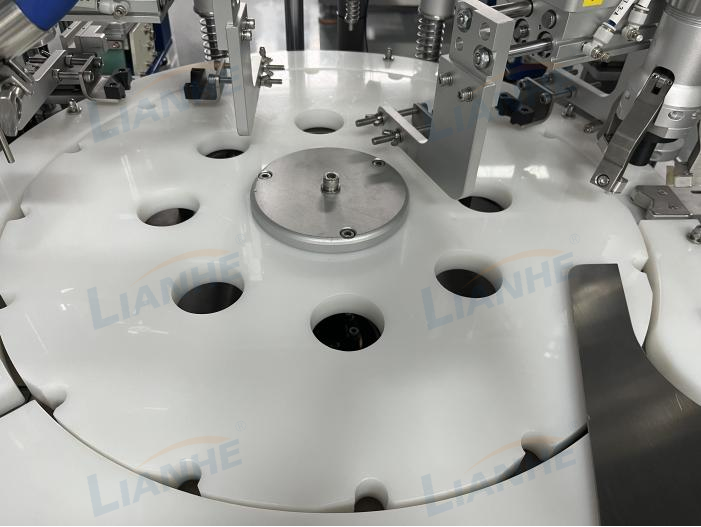

  Rotary Mold

  Custom plate saves space, secures bottles

•

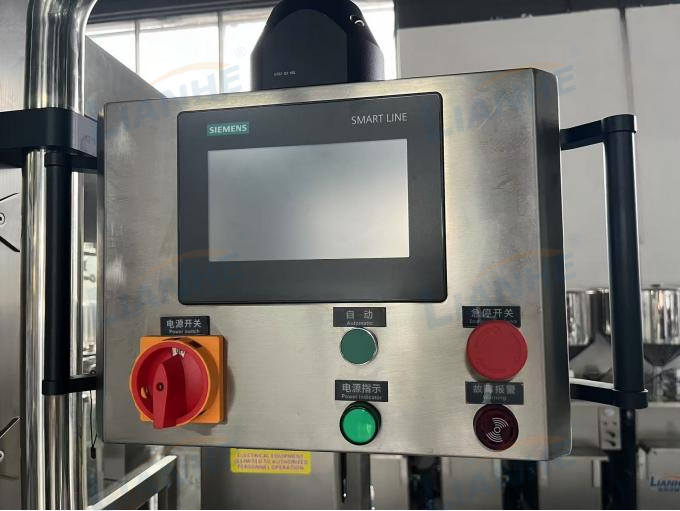

  Siemens Touch Screen Control

  PLC touch control, premium look, fast filling

•

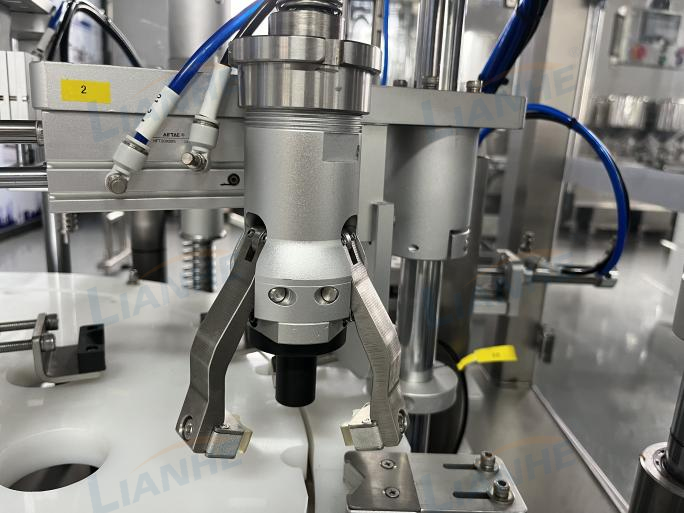

  Machine Hand

  Servo capping system adjusts to caps, ensuring damage-free sealing

•

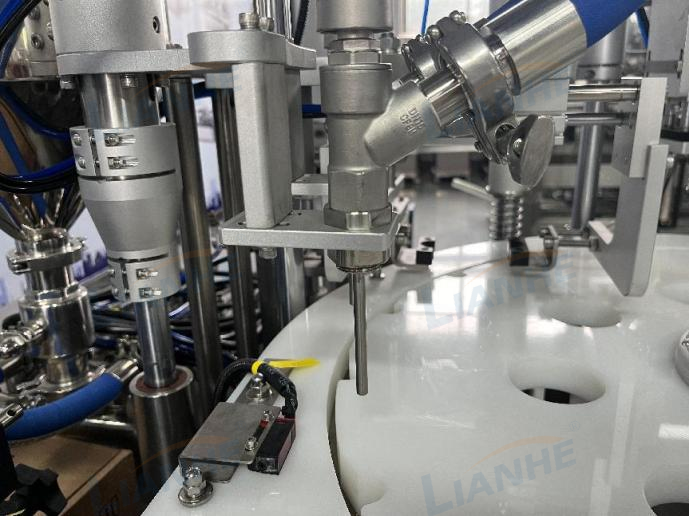

  Filling Head

  Adjustable nozzles (2-10), 316L stainless steel, universal bottle fit

1. Power supply: 220V/50HZ; 3KW
2. Noise: ≤85dB
3. Capacity range: 25ml~200ml (customizable)
4. Filling speed: 30~50 bottles/minute (quantitative filling)
5. Bottle diameter range: 15mm~80mm (customizable)
6. Bottle height range: 60mm~250mm (customizable)
7. Compressed air pressure: 0.5~0.8Mpa
8. Air consumption: 0.04m³/min
9. Capacity accuracy: ±0.5% (1-2 grams)
10. Capping speed: 30~50 bottles/minute (claw capping)
11. Number of cap teeth: 20mm~32mm
12. Torque control: adjustable

*Replacing the bottle does not require changing the mold, just adjust the mold size.

1. Cosmetics: lotion/essence/oil, etc.
