Automatic High Speed Aluminum Tube Filling and Sealing Machine

This machine can be used for filling creams and other materials. It has the characteristics of firm filling and high dosage accuracy. The three functions of filling, sealing and batch numbering are completed automatically. It is widely used in daily chemical, food and chemical industries, such as filling creams, glues, AB glue, chloroprene rubber, ointments, etc. This machine has the characteristics of convenient and fast dosage adjustment, high efficiency, beautiful appearance and compact structure. The tube cup can be adjusted according to the size of the tube. The important parts of the machine that are in direct contact with the material are made of stainless steel (generally SUS304, other products are SUS316L). The special valve makes this machine suitable for filling creams and other materials. It is an ideal and economical filling machine for daily chemical and other fields.

•

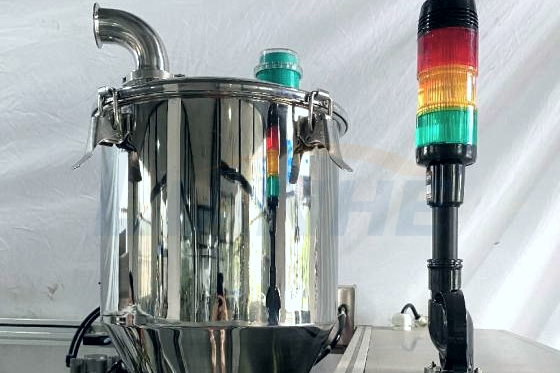

  Material Hopper

  Material hopper with automated feeding, mixing, and heating for viscous products

•

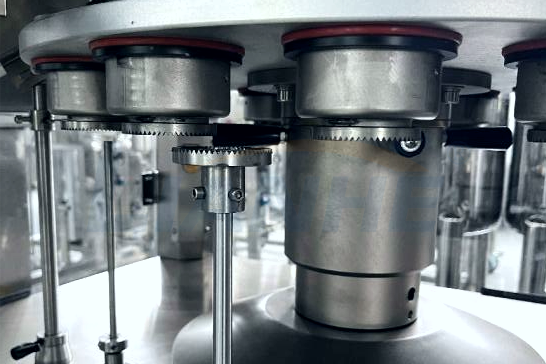

  Height adjustment

  Height adjustment can meet different size tube

•

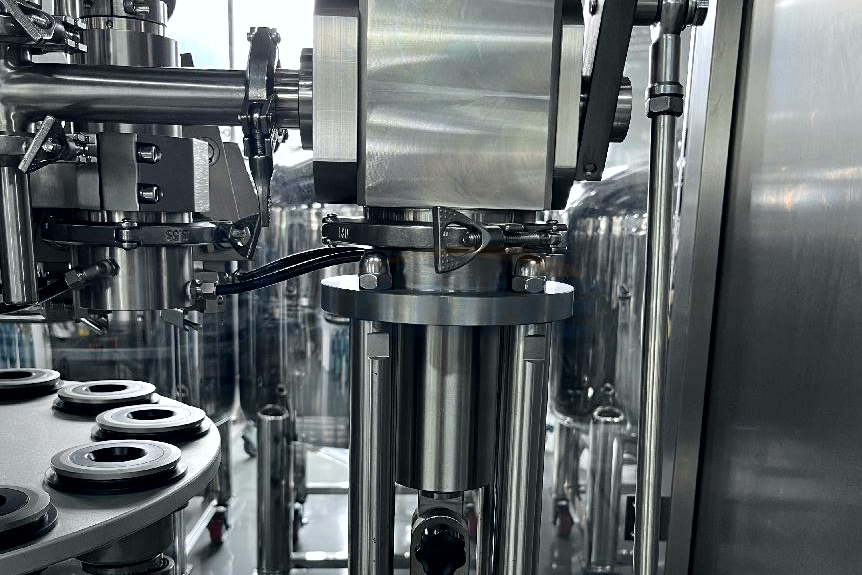

  SUS316L Filling Head

  SUS316L filling head with high accuracy

•

  Air Cylinder

  Can adjust the filling volume

1. Model No.: LH-80FL;
2. Filling volume: 20-200m
3. Filling accuracy: ≤±5%;
4. Capacity: 60-70 tubes/min;
5. Tube diameter: ф10-60mm(Customizable);
6. Tube height: 50-250mm (Max. Length);
7. Hopper volume: 40 L;
8. Motor Power: 2kw (380V / 50Hz);
9. Hot Sealing Power: 3KW
10. Air pressure: 0.55-0.65MPa;
11. Dimension: 2500×1020×1980 mm
12. Weight: 1100KG
13. Water chiller: 2 HP (For cooling system).

1. Daily products: Cream/hand care lotion etc
2. Chemical products: ointment/paste/other chemical products etc
