Automatic Lipstick Filling Machine

This equipment is used in the wax-based units of cosmetics and makeup series, mainly suitable for all-silicone lipstick/lip balm products. The equipment is equipped with fully automatic filling, refrigeration, preheating, constant temperature, demoulding, tube spinning and other intelligent detection and protection devices; simple operation, precise filling, fast production speed, high yield rate; the material tank adopts a double-layer heating and moisturizing design, equipped with a brushless motor for stirring, adjustable speed, external independent control, electric lifting, feeding and cleaning are very convenient. The equipment can quickly open molds and customize various products according to customer samples.

•

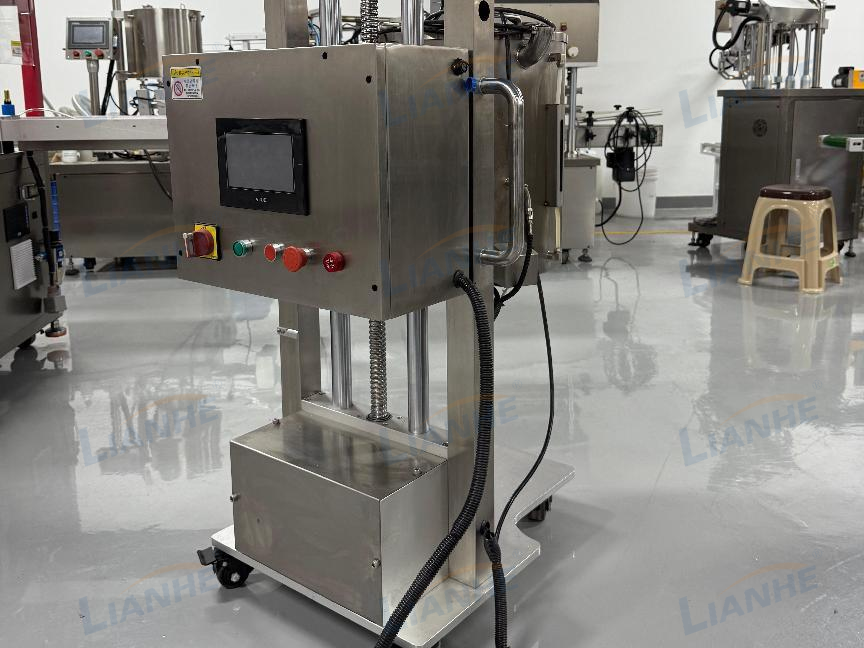

  Remelting station

•

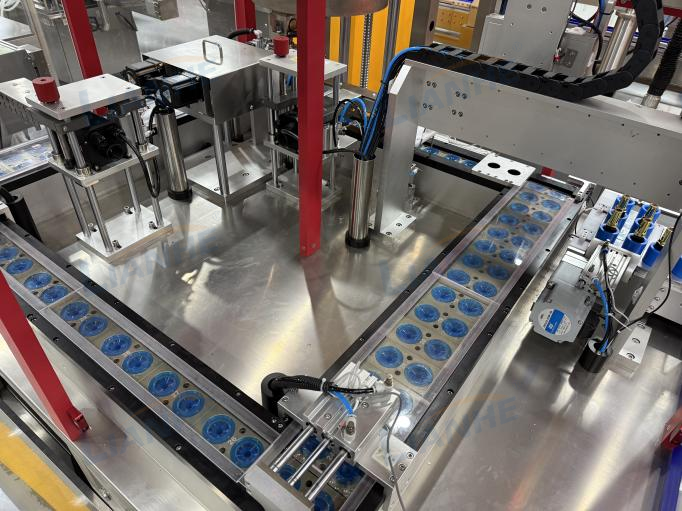

  Annular freezing tank

•

  Filling control box

•

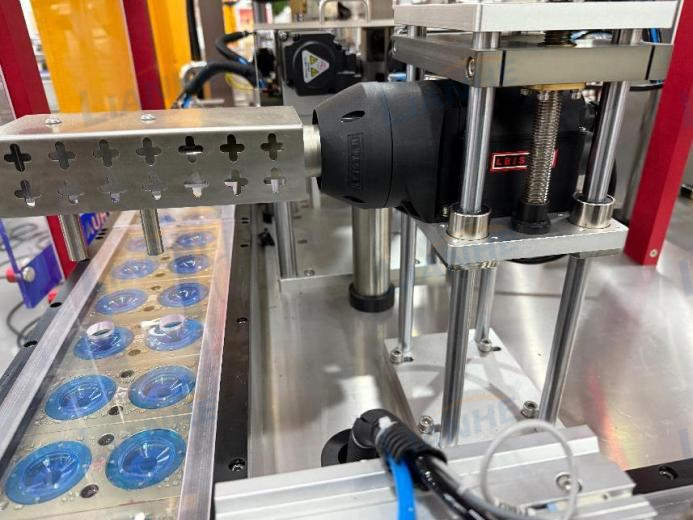

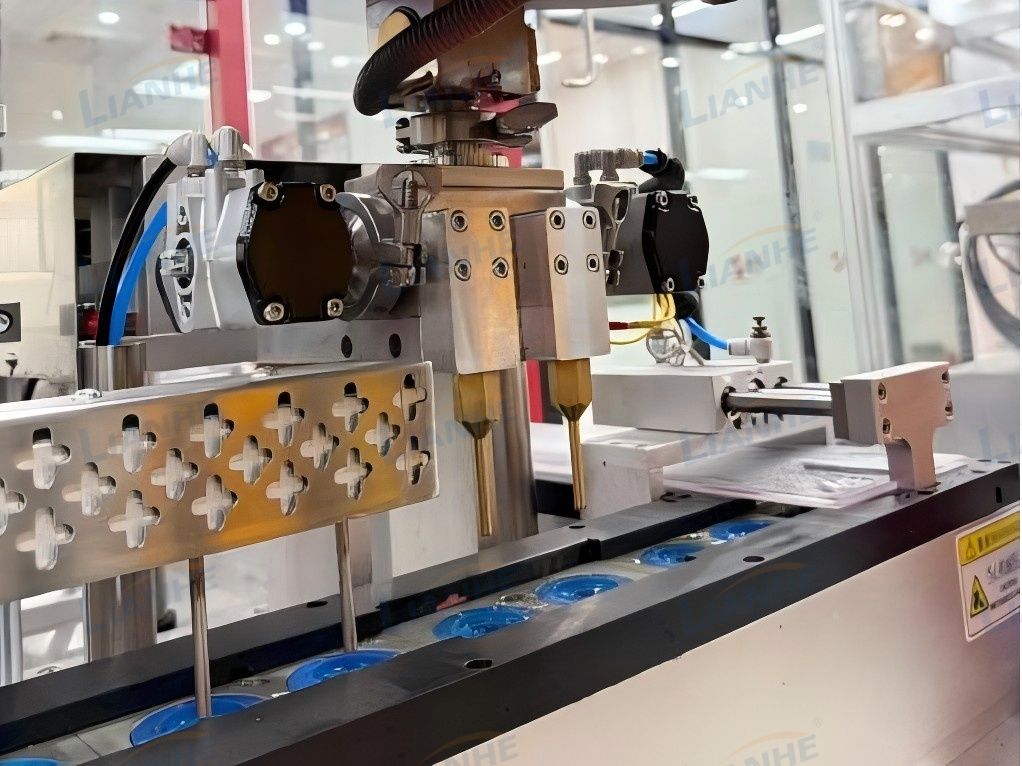

  2 Nozzles filling head

1. Technical parameters
2. Model: LH-TH2403
3. Power supply voltage/current: 380V/25A
4. Compressed air pressure: 0.5-0.8Mpa
5. Production capacity/hour: 800-1000 pieces
6. Gas consumption: 0.3M/min
7. Filling accuracy: ±0.1g
8. Capacity range: 1-15g
9. Barrel capacity: 30L
10. Refrigeration temperature: -15℃
11. Noise: <85dB
12. Length, width and height/mm: 3165*1260*1860

1. Lipstick, lip glaze
