Factory Chiller

Material: SUS304
Function: Chilling
Brand Name: LIANHE
Nominal Cooling Capacity: 14.5KW
Certification: CE/GMP/SGS/ISO

    Product Video

    Product description

    Air-cooled chillers are ideal for locations with space constraints or inadequate cooling water supply. Their cooling performance, however, is influenced by surrounding temperature and humidity levels, making them more suitable for applications with moderate thermal demands. All units come standard with comprehensive safety mechanisms such as motor overload safeguards, phase failure/reverse alarms, freeze protection thermostats, and pressure monitoring systems. These chillers deliver reliable operation with extended service life, following precise heat transfer protocols throughout their working process.

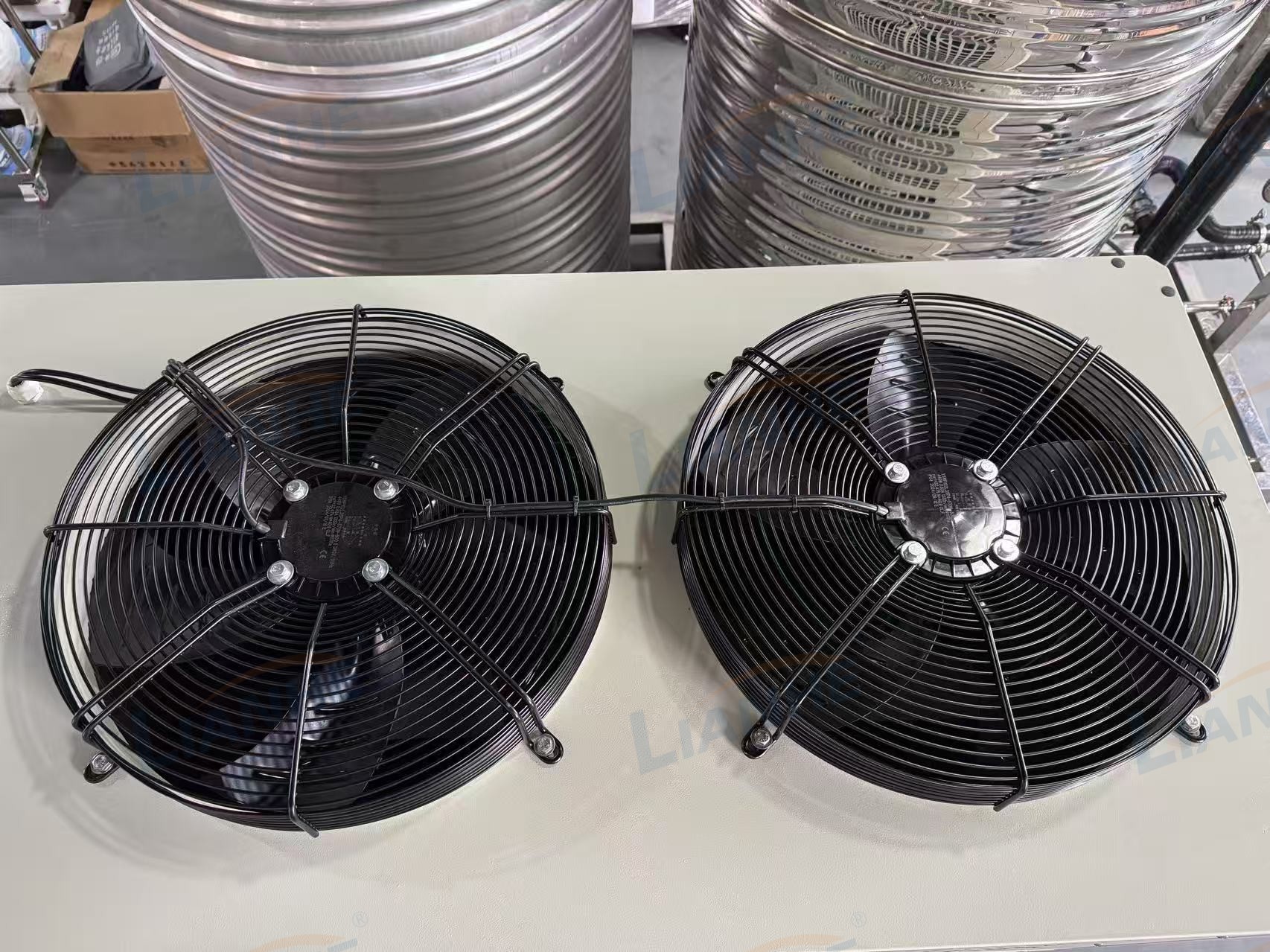

    • Cooling Fan

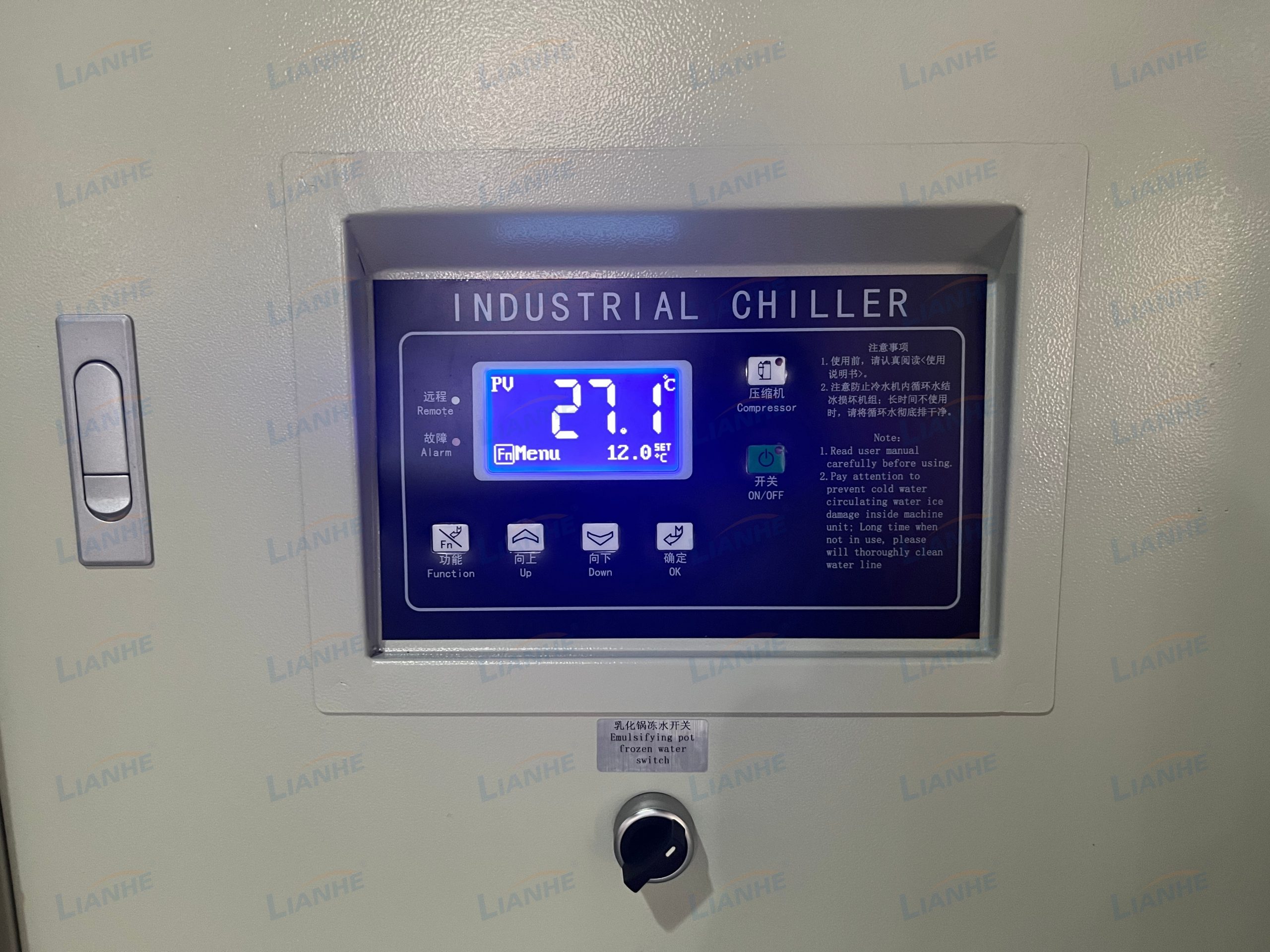

    • Screen Control System

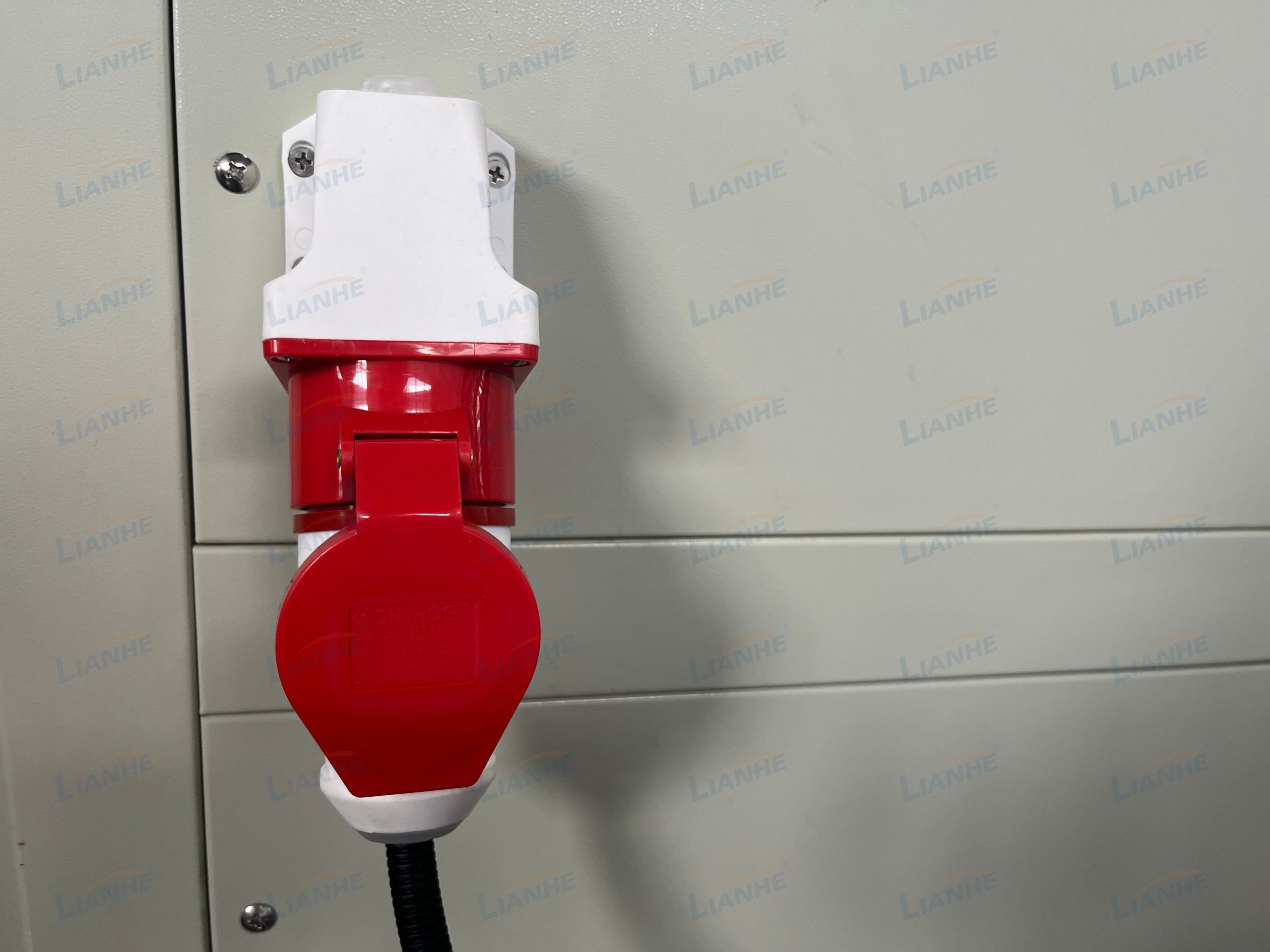

    • Electric Power Plug

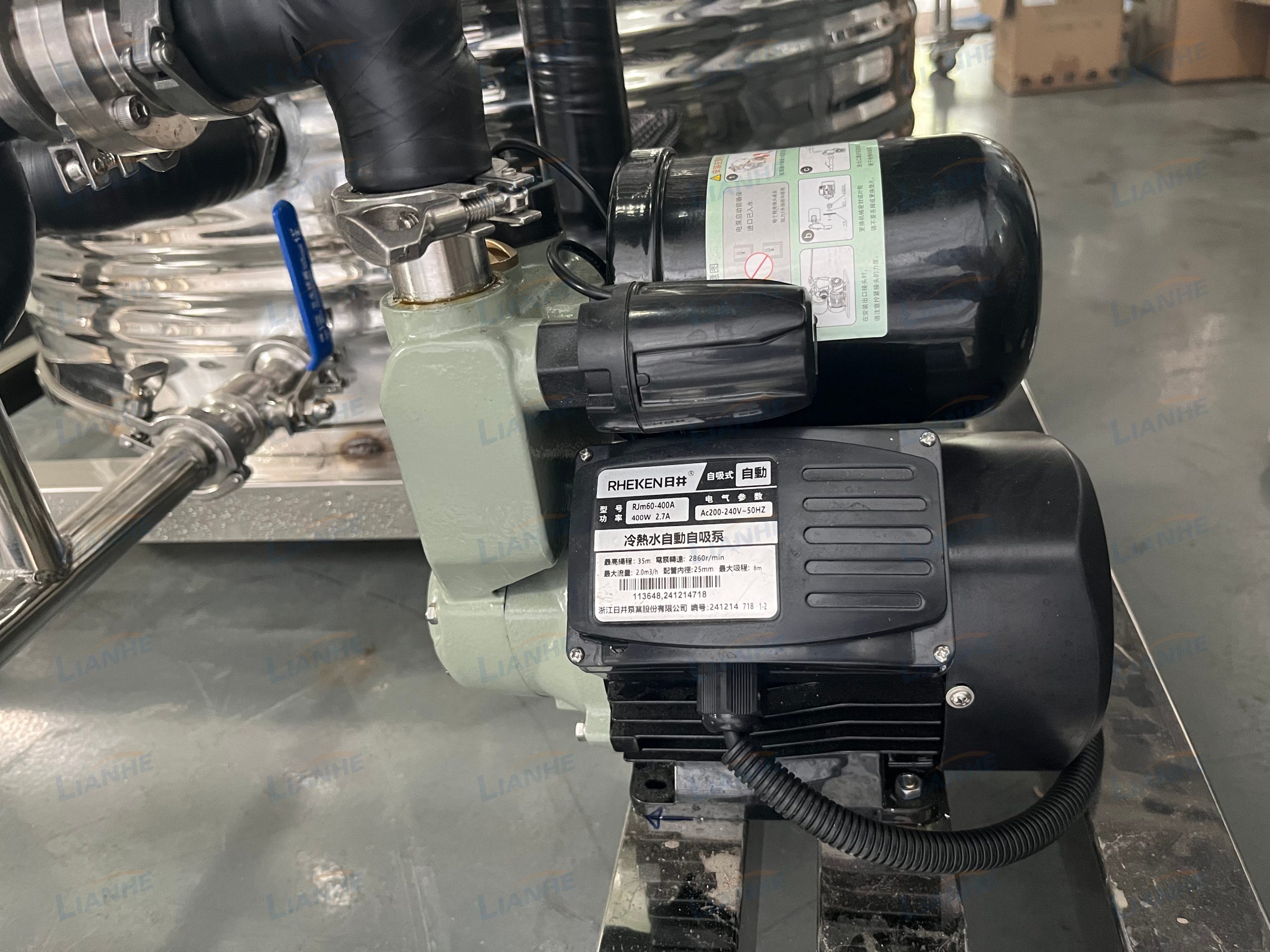

    • Pressure Pump

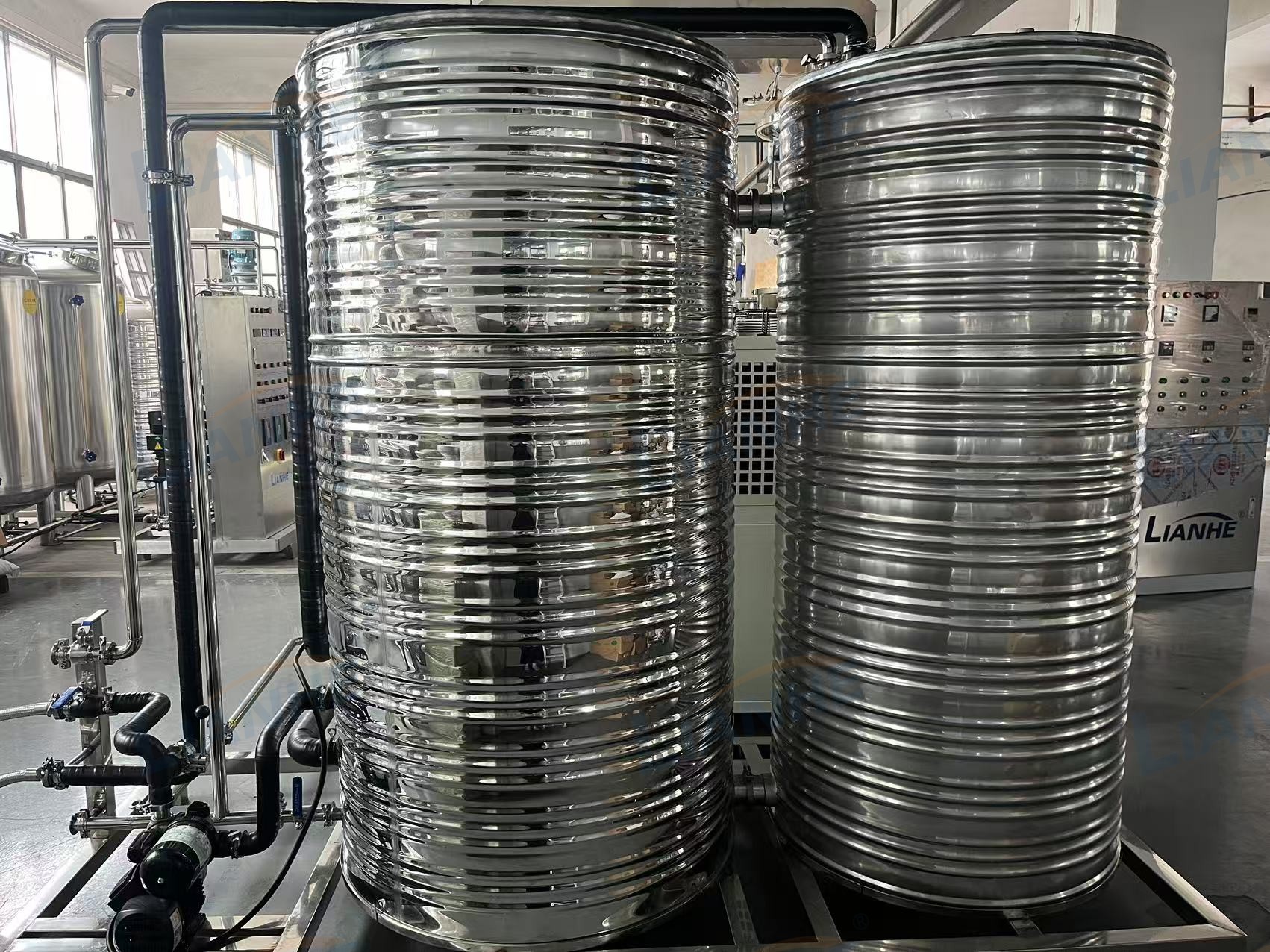

    • Water Buffer

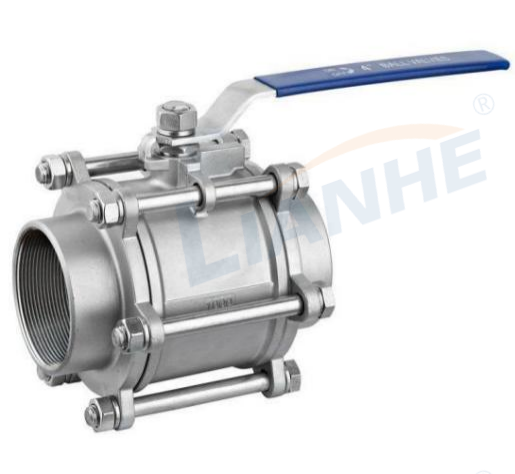

    • Sanitary Valve

    Parameter

    1. Model: DCX050AS005005MC
    2. Power supply: 380V 50HZ
    3. Nominal cooling capacity: 14.5KW
    4. Refrigerant: R407C
    5. Compressor power: 3.75KW
    6. Refrigerant charge: 3KG
    7. Machine size: 1640*760*1500mm
    8. Machine weight: 280Kg
    9. Machine number: DC20250108008

    Application fields

    1. Plastic Processing Factory
    2. Food and Pharmaceutical Industry
    3. Electronic Manufacturing Field
