Fully Automatic Double-Head Filling Machine

The joint fully automatic gear pump double-head filling machine integrates two independent filling heads, supports synchronous filling operations, adapts to the production needs of automated assembly lines, and significantly improves filling efficiency. It uses corrosion-resistant 316L stainless steel magnetic gear pumps and shaftless magnetic drive technology to avoid liquid leakage and motor overload risks. It is suitable for oils, cosmetics, highly corrosive liquids and other media, and has a touch screen human-machine interface to achieve digital adjustment of filling volume and speed.

•

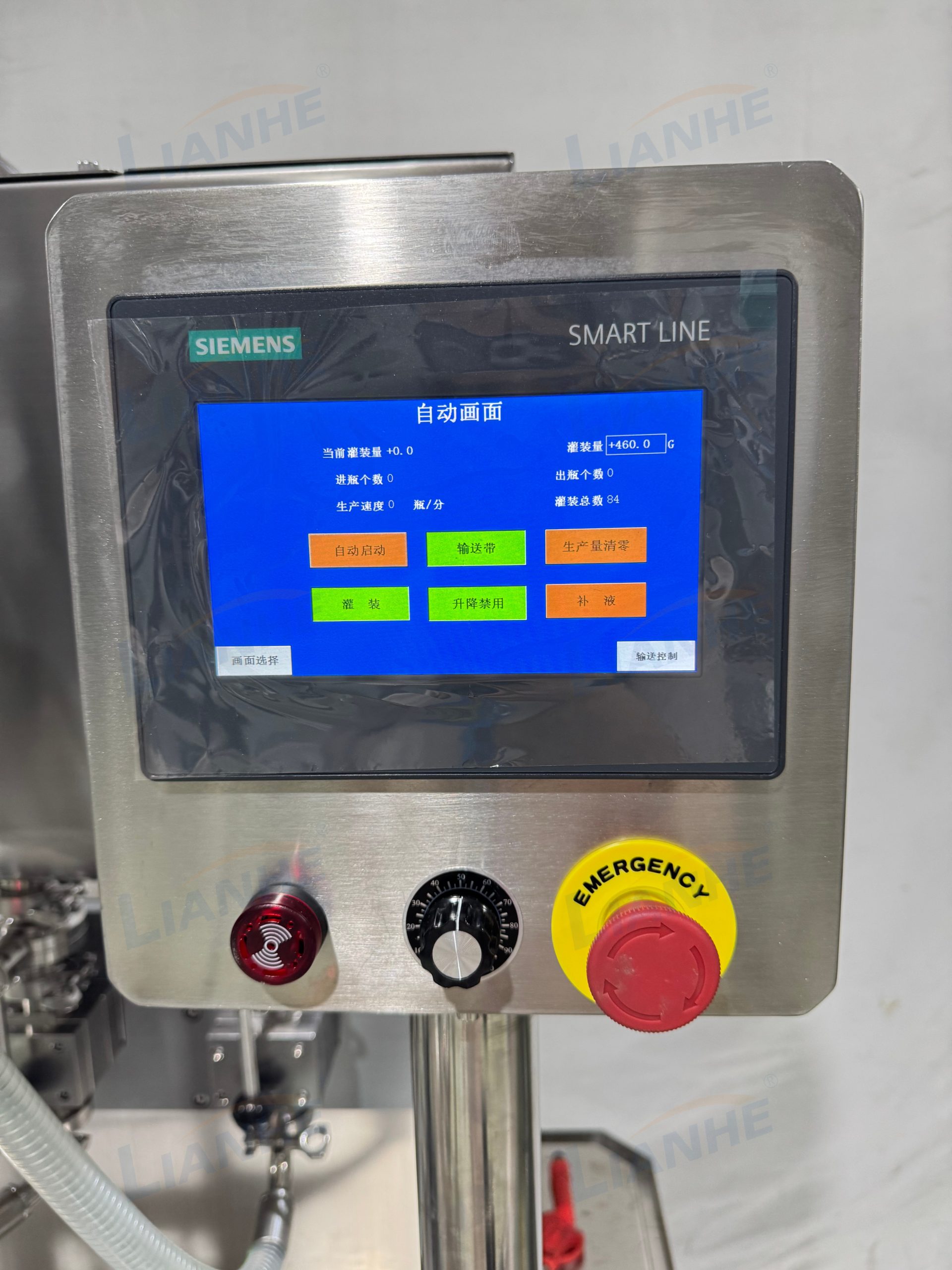

  Siemens PLC Touch Screen Control

  Imported high-class PLC touchscreen systems, easier and faster operation

•

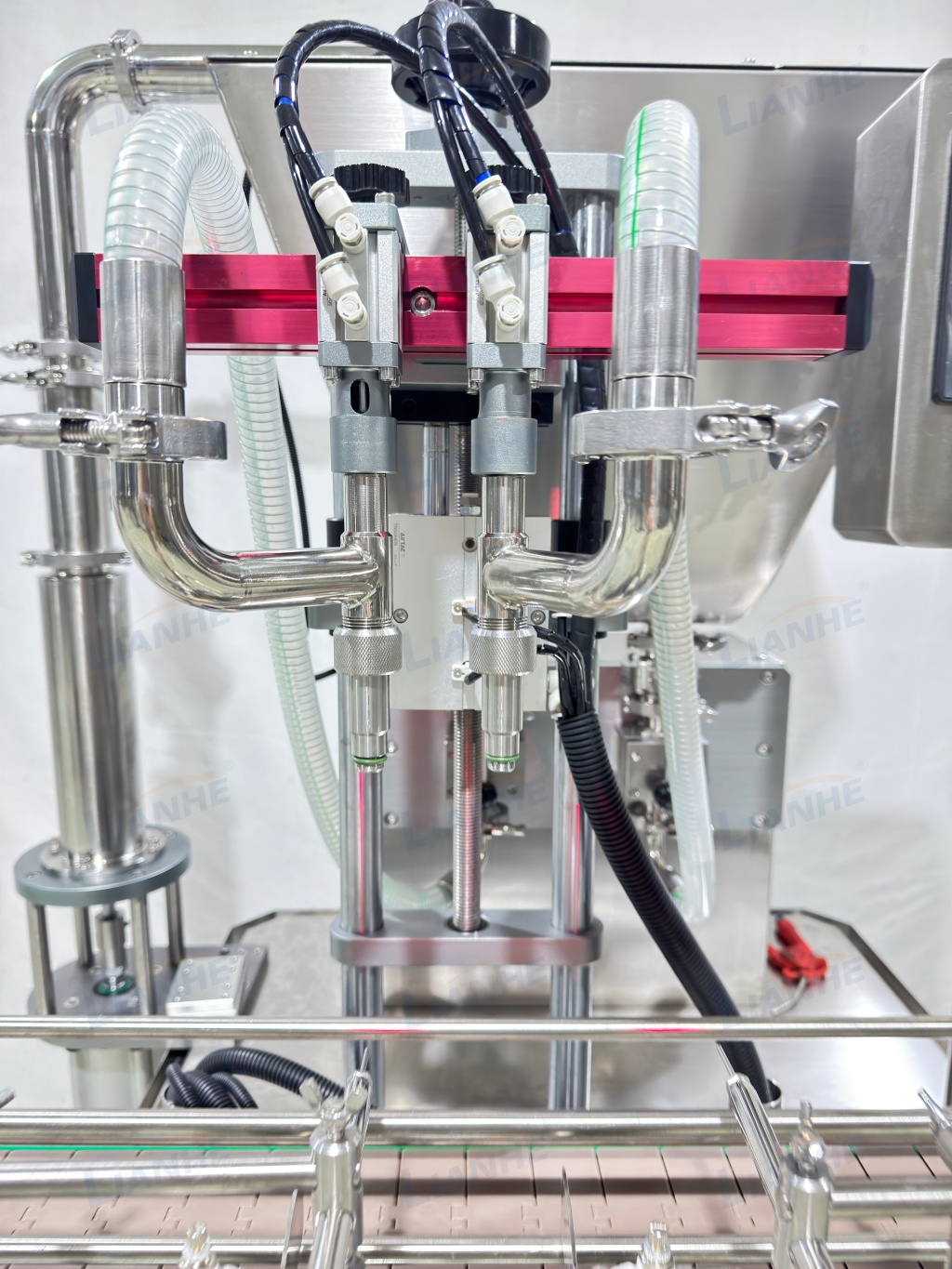

  Filling Nozzles

  Customizable no-drop nozzles (2/4/6 sizes), stainless steel 316L contact parts, easy assembly

•

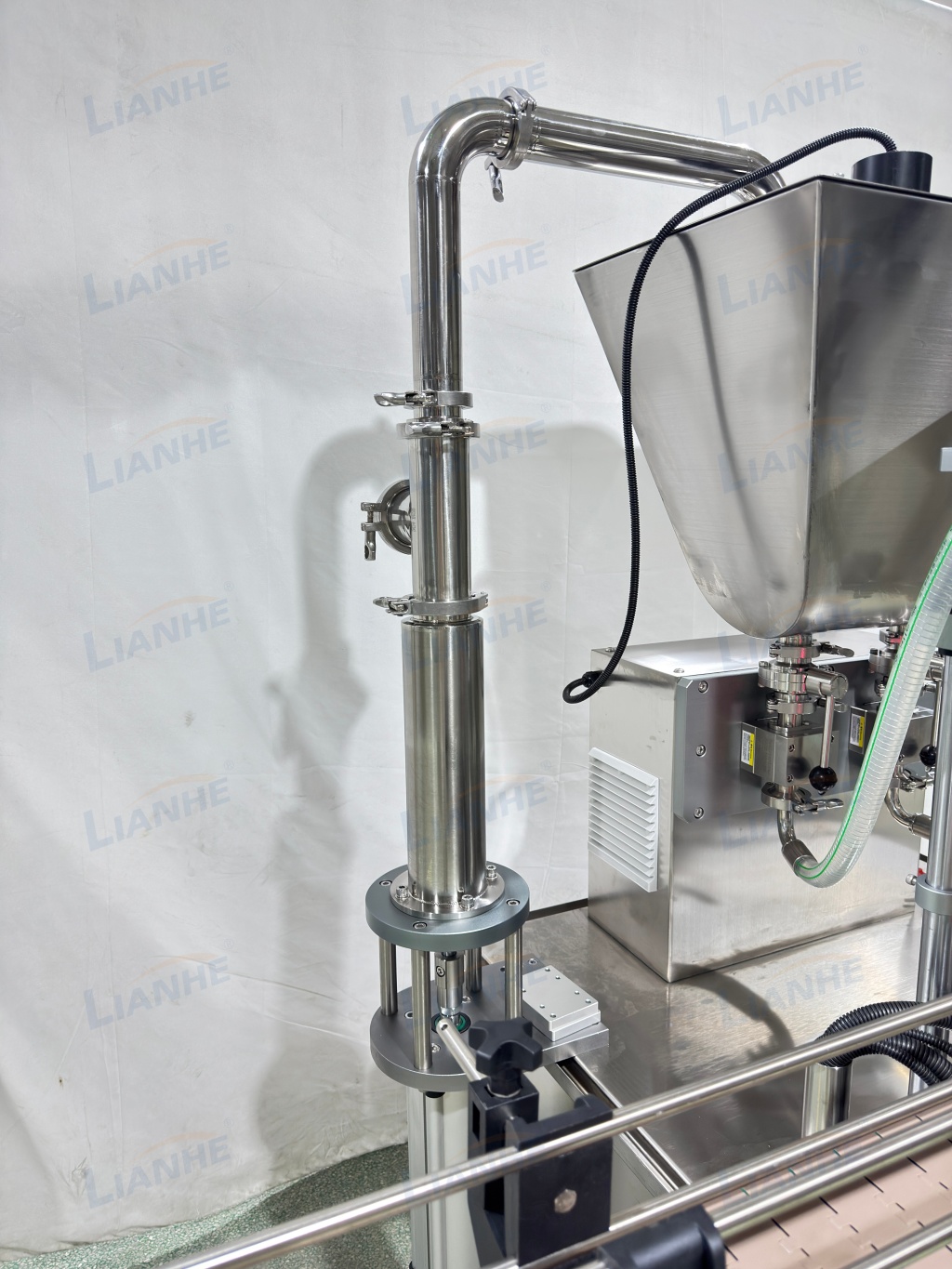

  Material Feeding Pump

  Can be directly connected to the barrel to refill

•

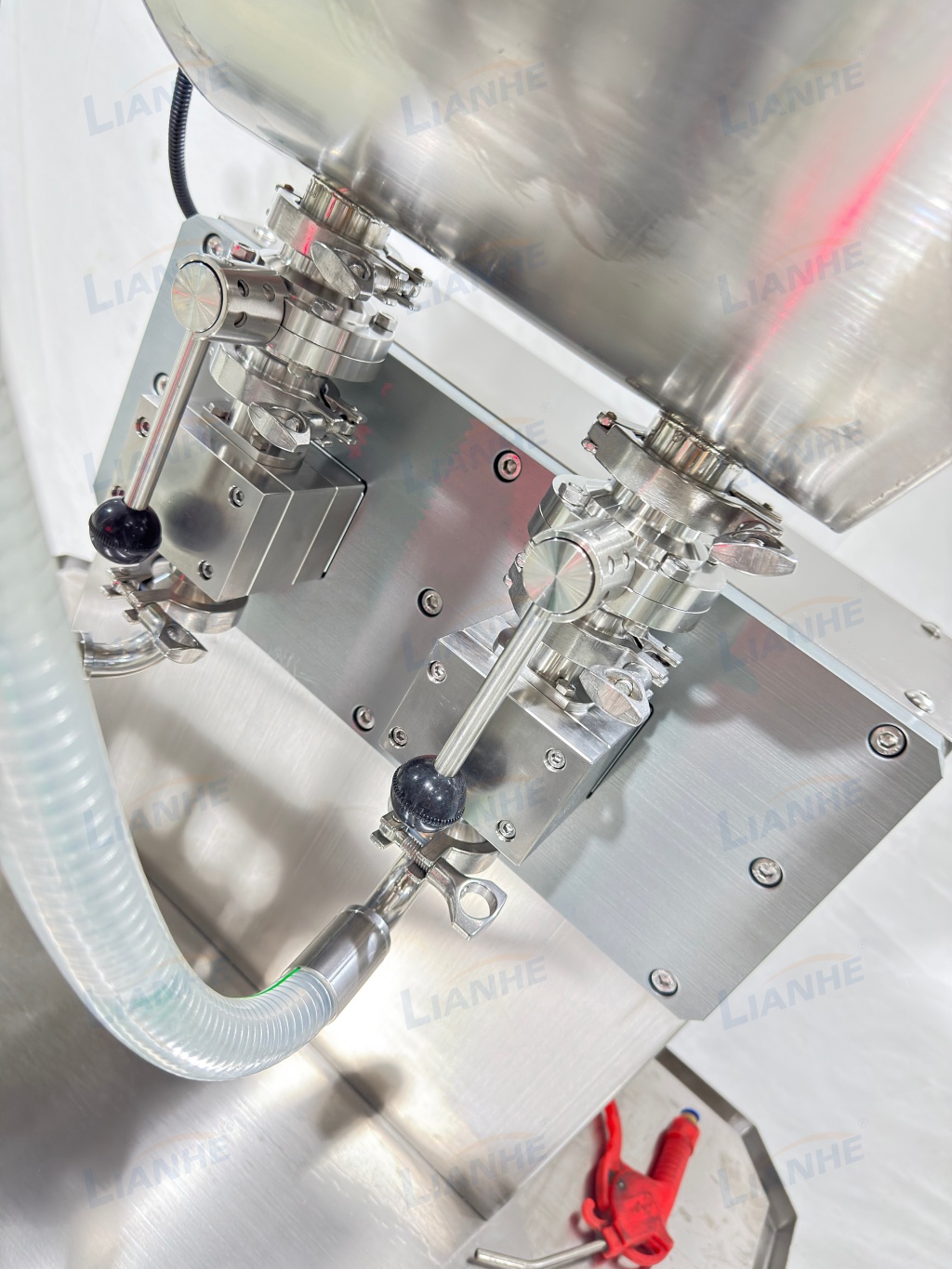

  Material Inlet Valve

  Control hopper feeding; open valve during filling

1. Number of filling heads: Double heads
2. Filling range: 5ml-5000ml
3. Filling form: Gear pump filling
4. Filling speed: 100-3000 bottles/hour
5. Filling accuracy: ±1%
6. Material: Filling frame is made of 304 stainless steel
7. Program control: PLC+touch screen
8. Material of filling nozzle, material tank and other parts in contact with liquid: 304 stainless steel, polytetrafluoroethylene
9. Air pressure: 0.6-0.8MPa
10. Conveying motor: Servo motor
11. Power: 3.5KW/220V
12. Material tank capacity: 30 liters (with liquid level switch)

1. Food field: peanut butter, mayonnaise, jam, etc.
2. Daily necessities field: shower gel, facial cleanser, laundry detergent, disinfectant, etc.
3. Beauty field: cream, body lotion, makeup remover, etc.
