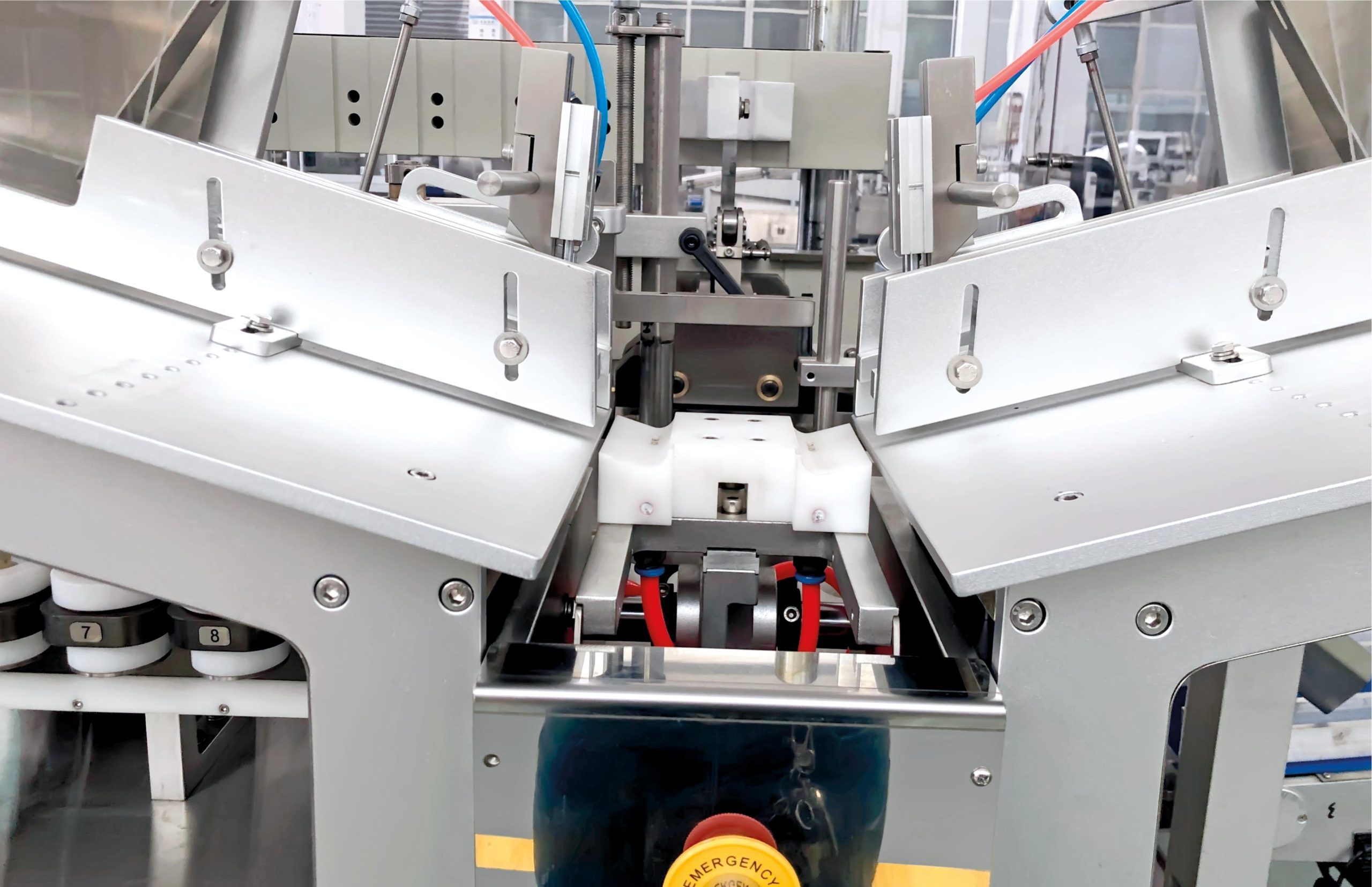

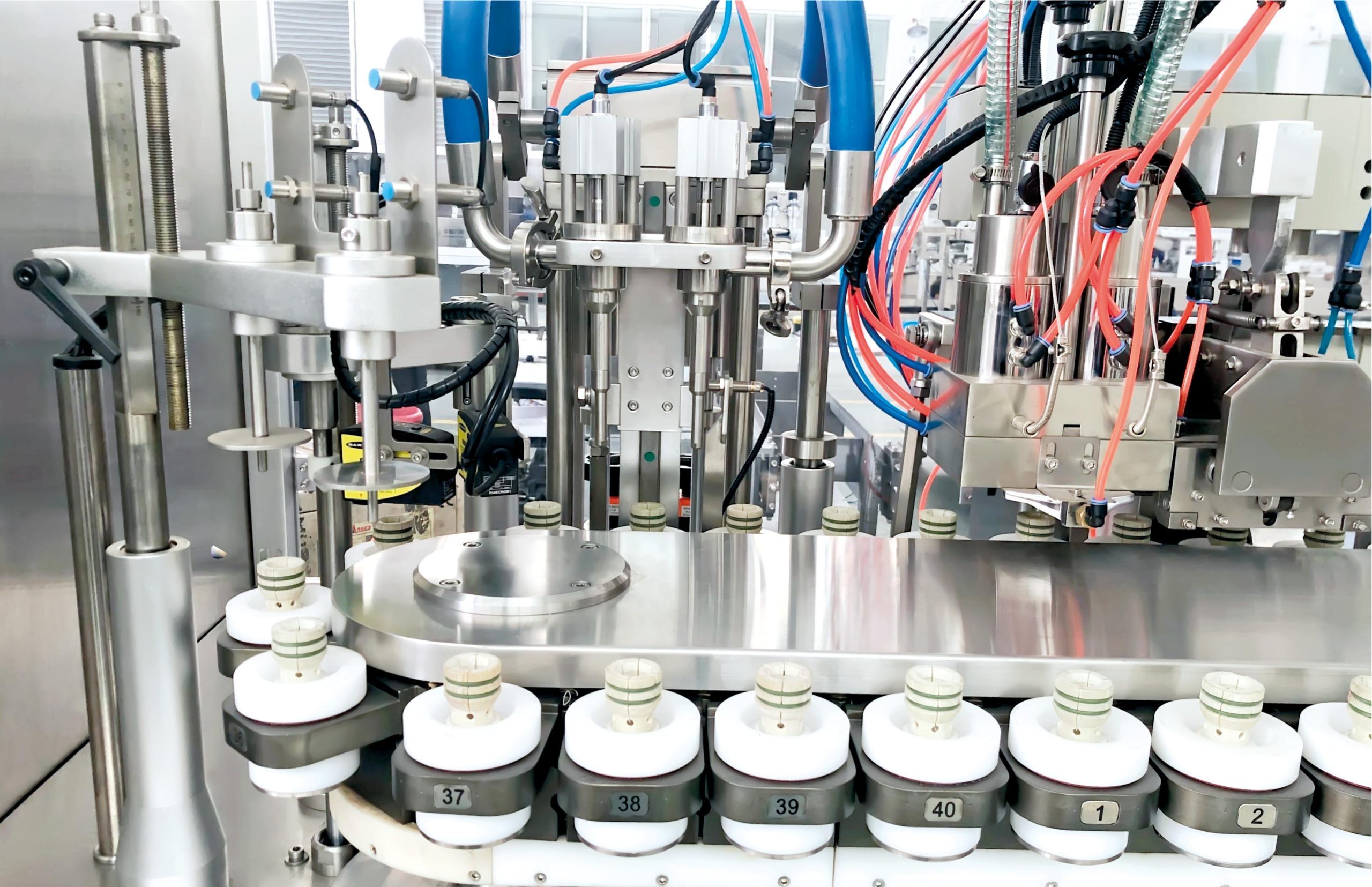

Fully automatic double-head high-speed filling and sealing machine

This advanced filling machine is equipped with a user-friendly touch screen interface and is intuitive to operate. It ensures accurate filling through pneumatic control and is equipped with photoelectric sensors and pneumatic door linkage. The system uses pneumatic actuator control valves to provide independently adjustable and cleanable flow channels to ensure efficiency and safety. The machine adopts a drip-proof and anti-drawing nozzle design, made of durable stainless steel and anodized aluminum, and the parts that come into contact with the material are specially made of corrosion-resistant SUS316 stainless steel to ensure hygiene and durability.

1. Model: LH-TF120B
2. Working mode: double pump, tube belt type
3. Applicable hose diameter: φ22mm-φ38mm (specified parts need to be replaced)
4. Applicable hose length: 100mm-220mm
5. Power supply: three-phase 220V, 380V can be customized
6. Compressed air pressure: 6bar
7. Color mark positioning accuracy: ±1.5mm
8. Filling scrap rate ≤5‰
9. Production speed: less than 120 pieces/minute, 100 pieces/minute when producing color strip toothpaste
10. Main motor power: 3.7KW
11. Net weight: 3000kg
12. Dimensions: 2950×1310×2300(mm)
13. Automatic fault detection

1. Toothpaste (Tube)
