Powder Filling Machine

Material: SUS304/316L
Function: filling
Brand Name: LIANHE
Filling Speed: 15-30 jars/m
Certification:CE/GMP/SGS/ISO

    Product Video

    Product description

    Engineered to comply with national GMP standards, this single-head powder filling system integrates seamlessly with bottling, capping, labeling, and auxiliary equipment to form a fully automated production line. Its hygienic all-stainless-steel construction ensures durability while enabling effortless disassembly and sanitation. Precision servo-driven mechanisms guarantee consistent, high-accuracy dosing, with programmable formula storage for rapid product changeovers. Interchangeable screw assemblies accommodate diverse material types, from ultra-fine powders to granular substances. The intuitive PLC touchscreen interface supports automated processes including container detection (prevents filling without proper positioning) and anti-leak safeguards. Designed for versatile applications, this corrosion-resistant solution meets stringent requirements across food processing, pharmaceutical manufacturing, and handling of aggressive chemical compounds.

    • Powder Feeder

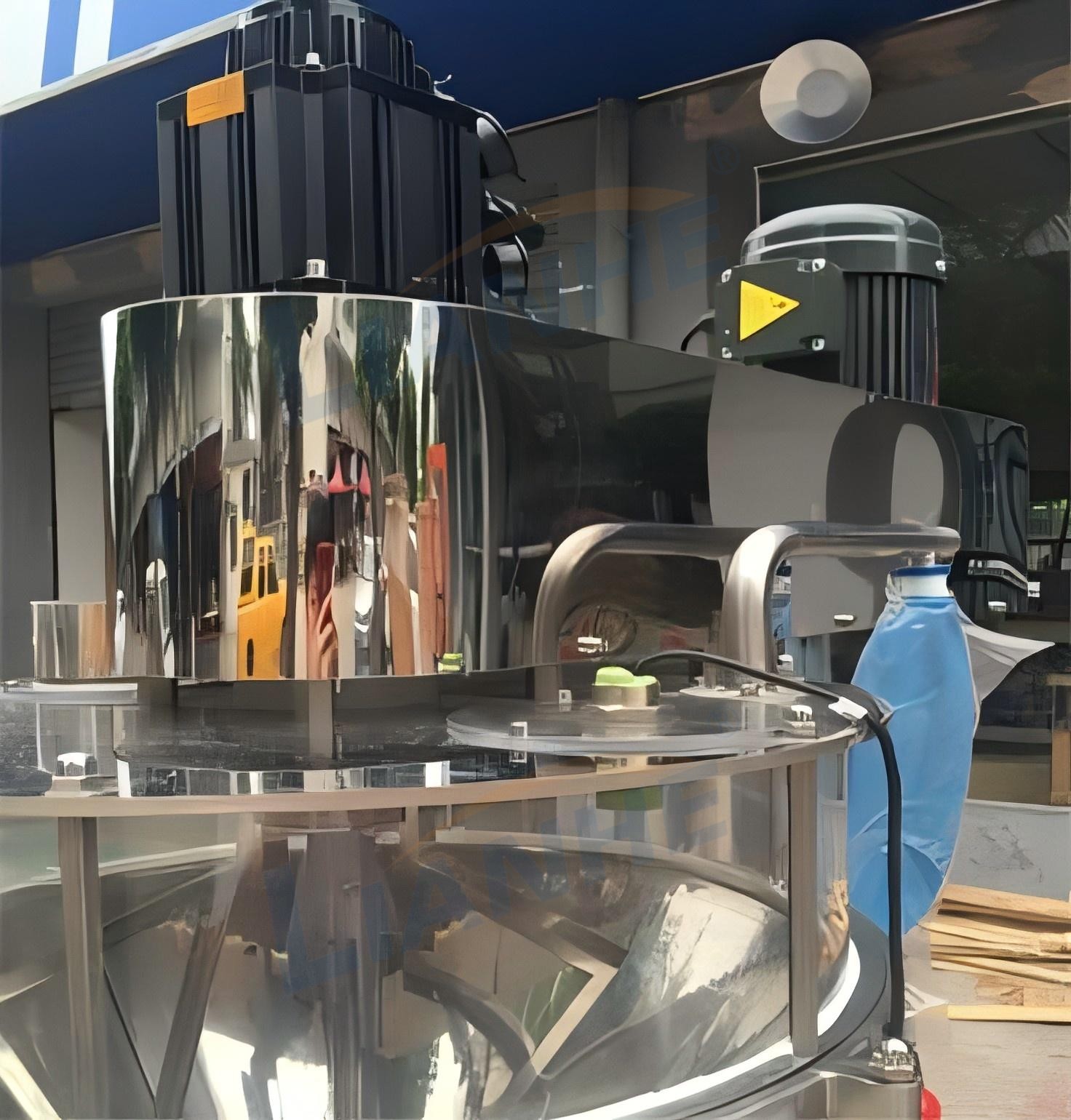

    • Mixing Head

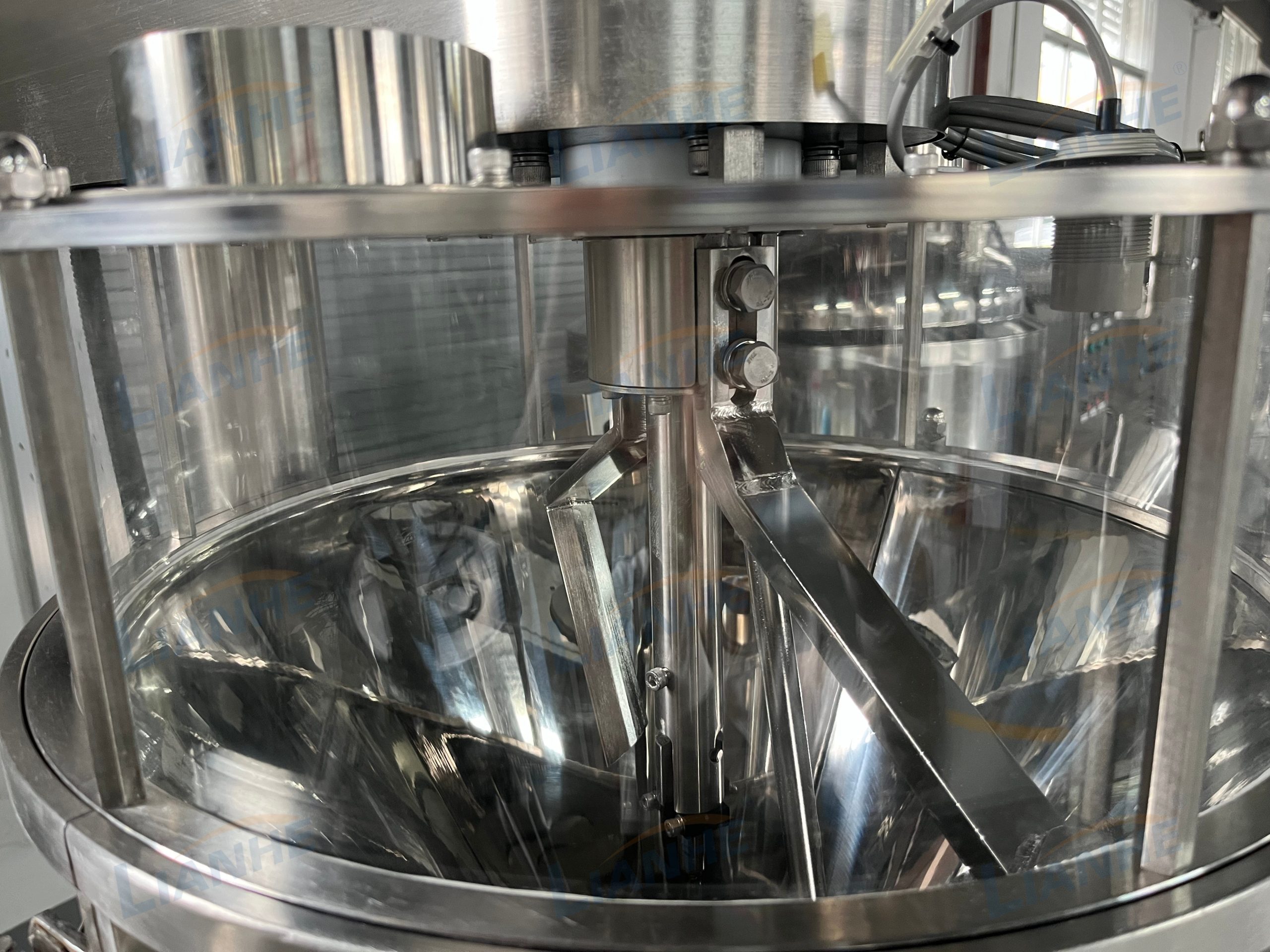

    • Mixing Paddle

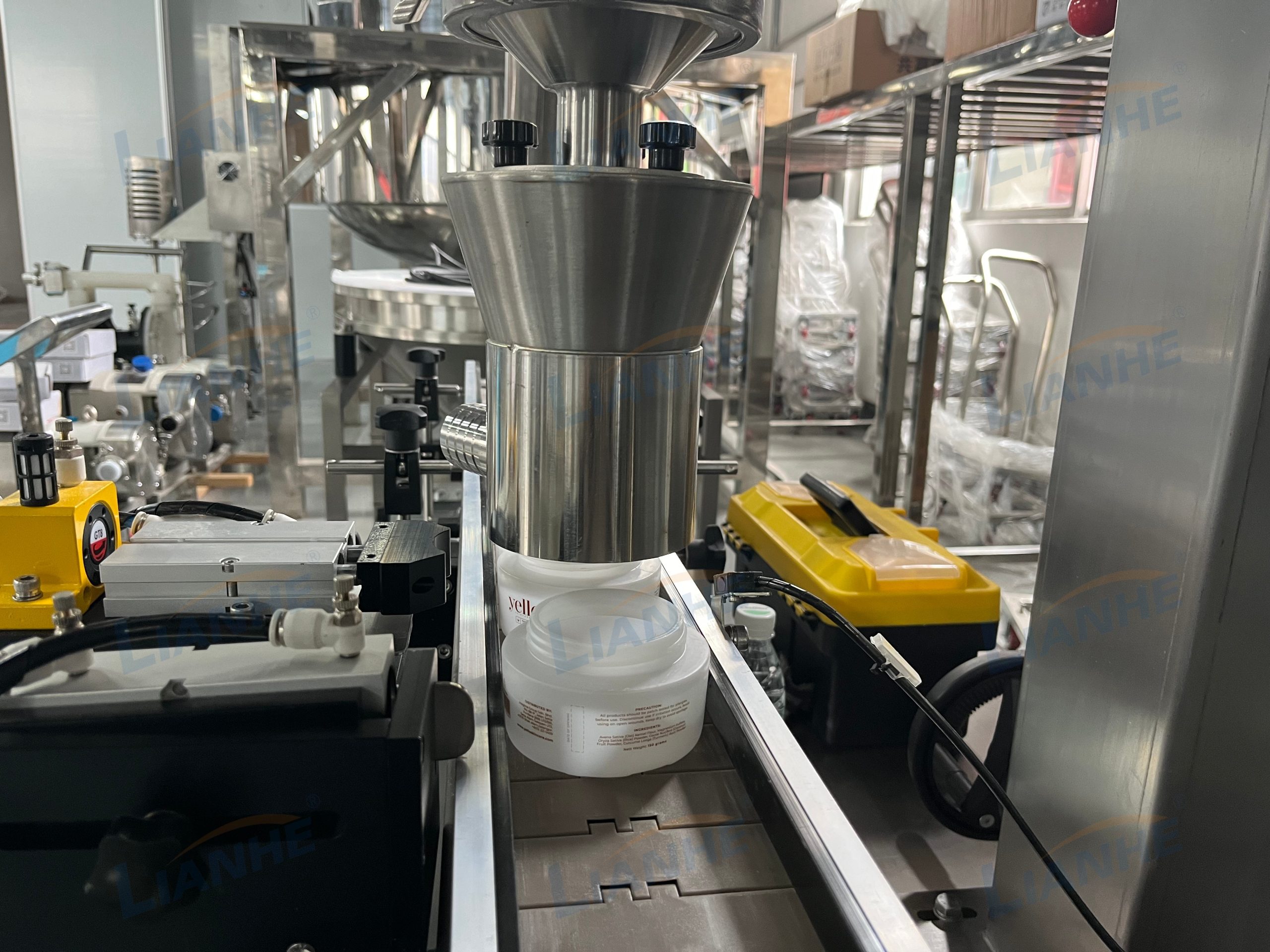

    • Filling Head

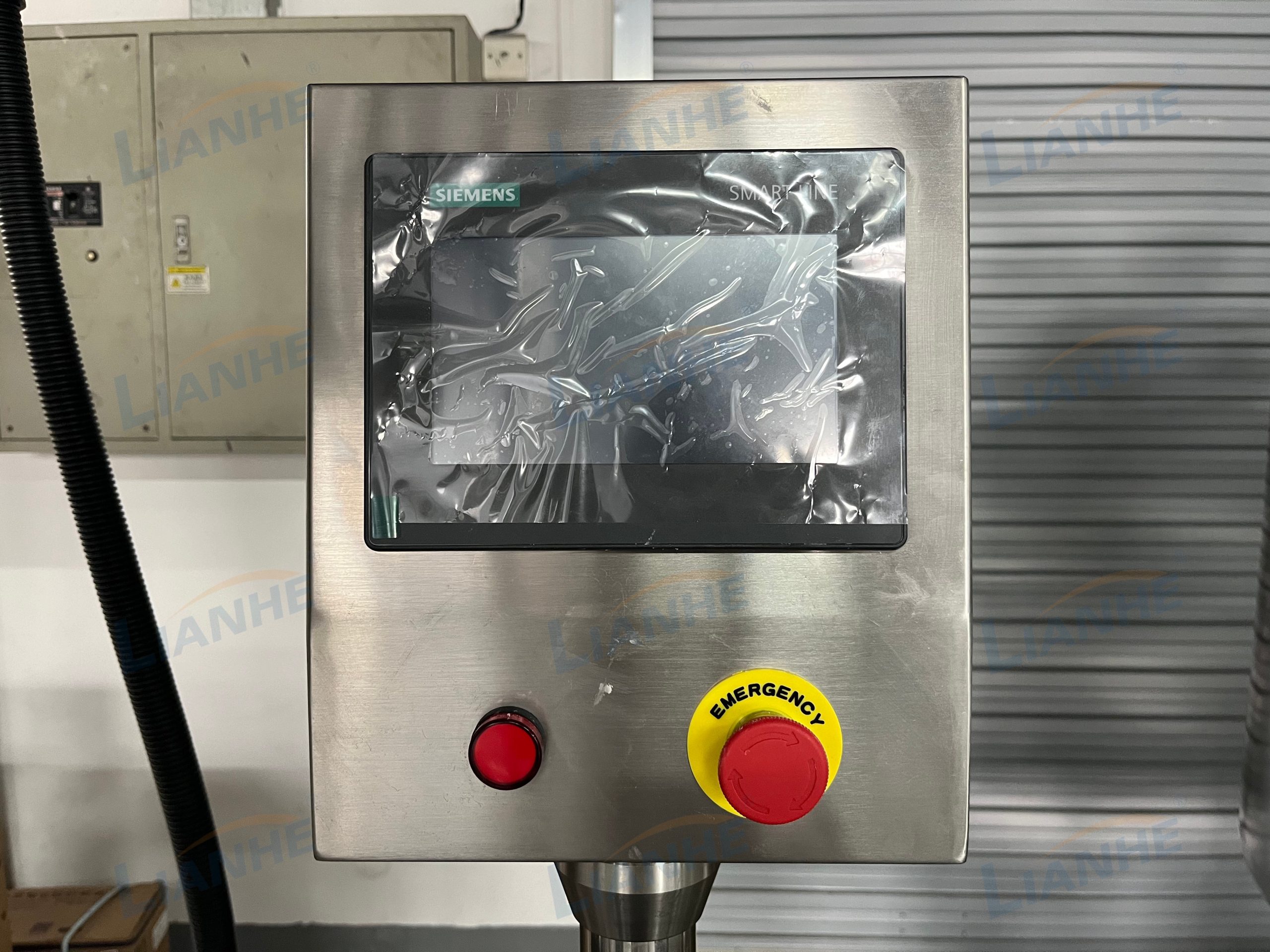

    • Siemens PLC Touch Screen Control

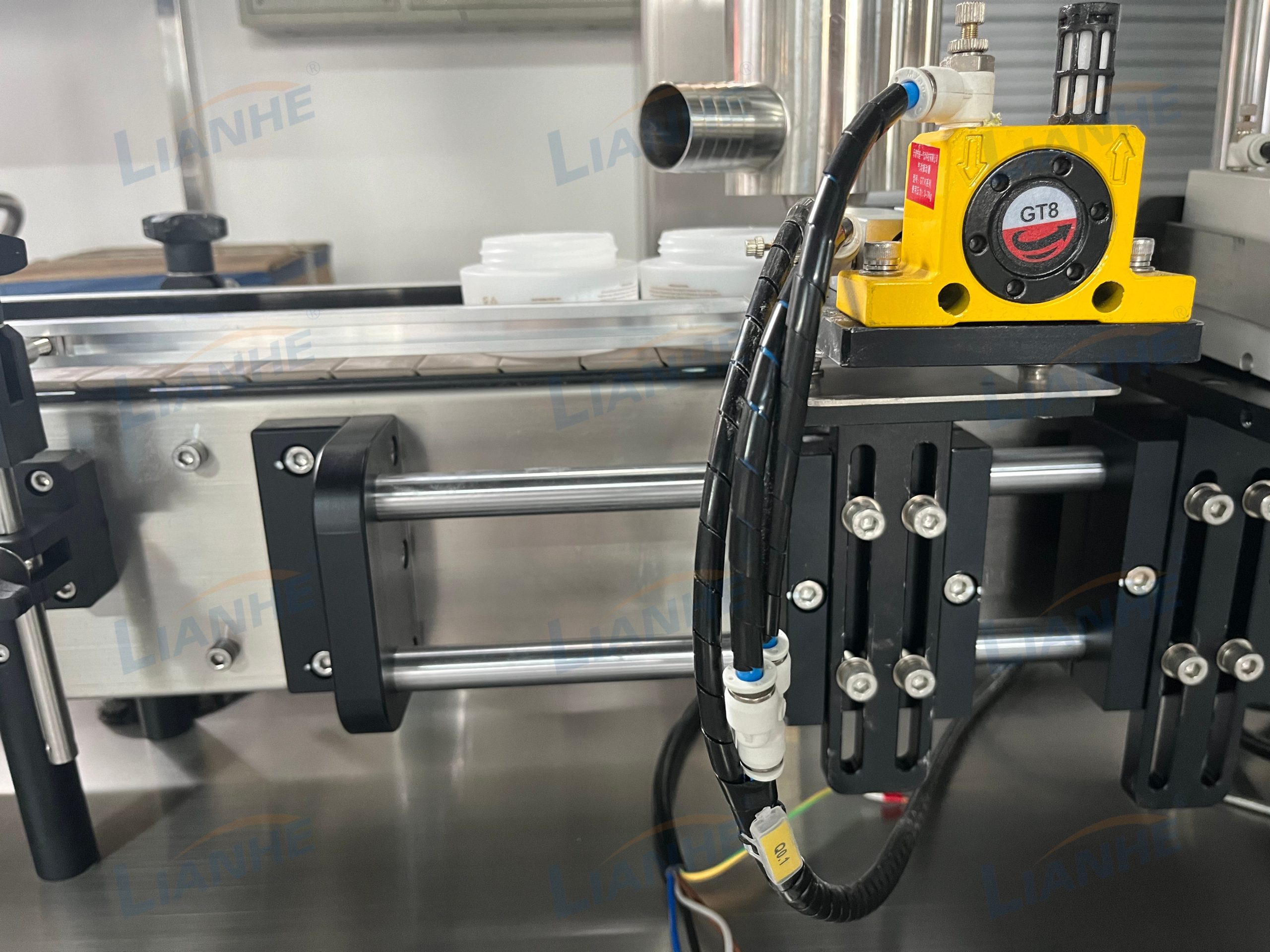

    • Bottle Clamp Cylinder

    Parameter

    1. Model: LH-APF50
    2. Production capacity: 15-30 jars/min
    3. Adapt to specifications: 50-250ml
    4. Number of filling heads: 1 head
    5. Measurement error: ±0.5-1%
    6. Voltage: 380V, 50Hz/60Hz
    7. Power: 2.2KW
    8. Dimensions: 2000×1000×1980mm (L*W*H)
    9. Weight: About 200kg
    10. Hopper capacity: 50 liters

    Application fields

    1. Daily products: condiments/cosmetics etc
    2. Chemical products: talc/dyes etc
    3. Food products:coffee powder/ chili powder etc
