Semi-Automatic Constant Temperature Filling Machine

The Constant Temperature Filling Machine is ideal for heated filling of pastes in cosmetics, food, and daily chemical products. It features heating and mixing to maintain material consistency and ensure accurate filling. Perfect for small to medium-volume production with simple operation and high efficiency.

1. High Precision Filling: Filling range from 10 to 250ml with accuracy up to ±0.5%.
2. Heating & Temperature Control: 5KW heating power with temperature range of 0–100°C ensures stable material temperature.
3. Efficient Performance: Filling speed of 25–50 bottles per minute depending on volume.
4. User-Friendly Design: Equipped with a 30L hopper and movable wheels for easy feeding and mobility.

•

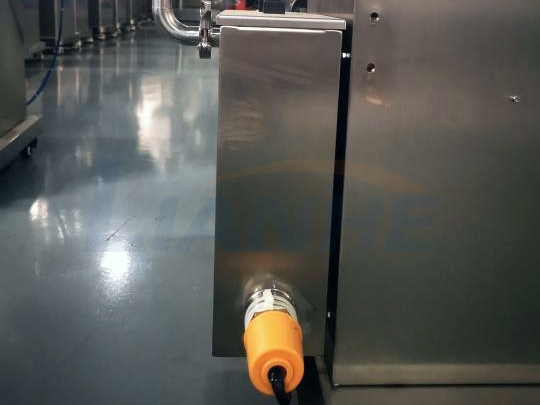

  Control Box

•

  Water Tank

•

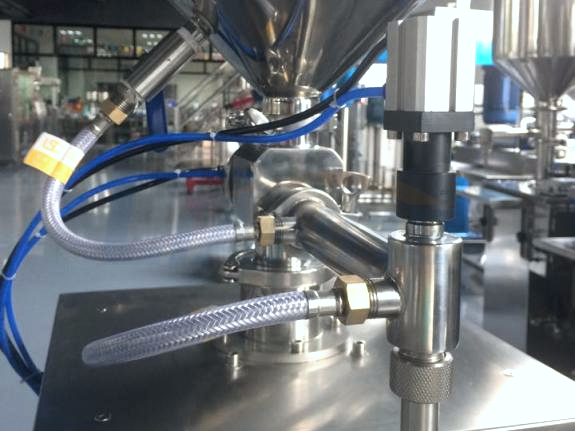

  Hot water pipe and SUS304 Filling Nozzle

•

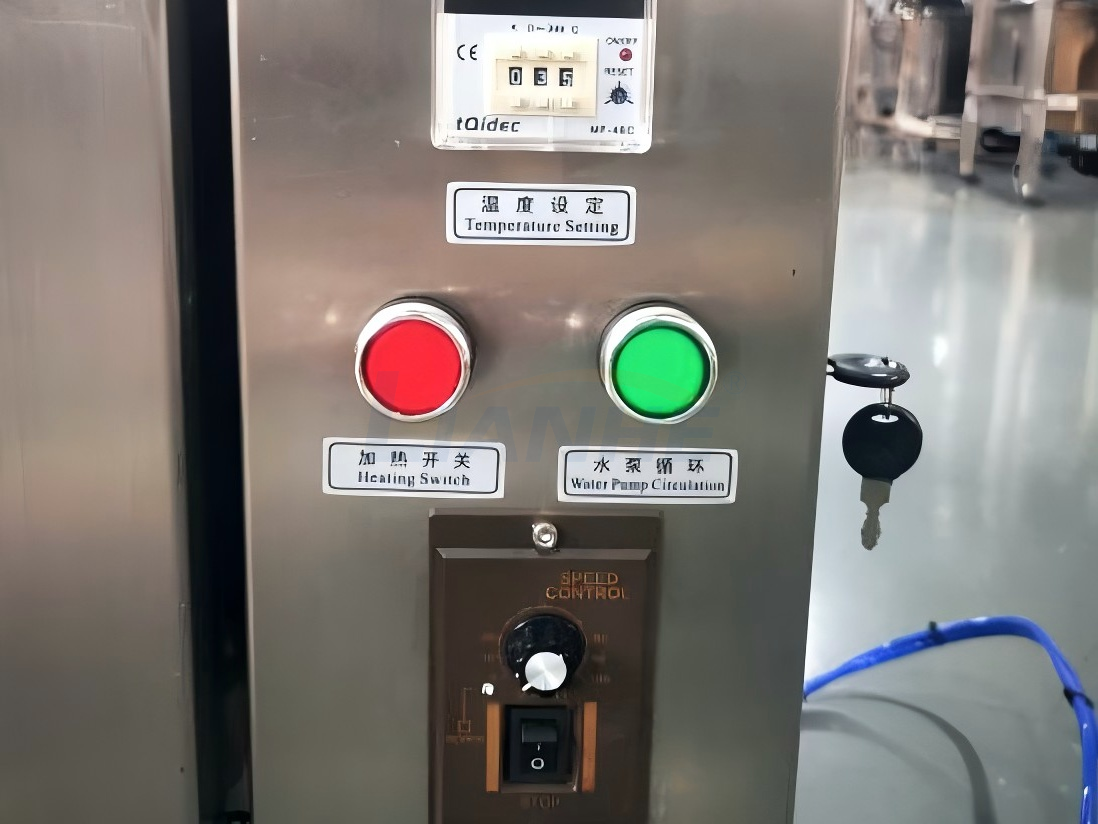

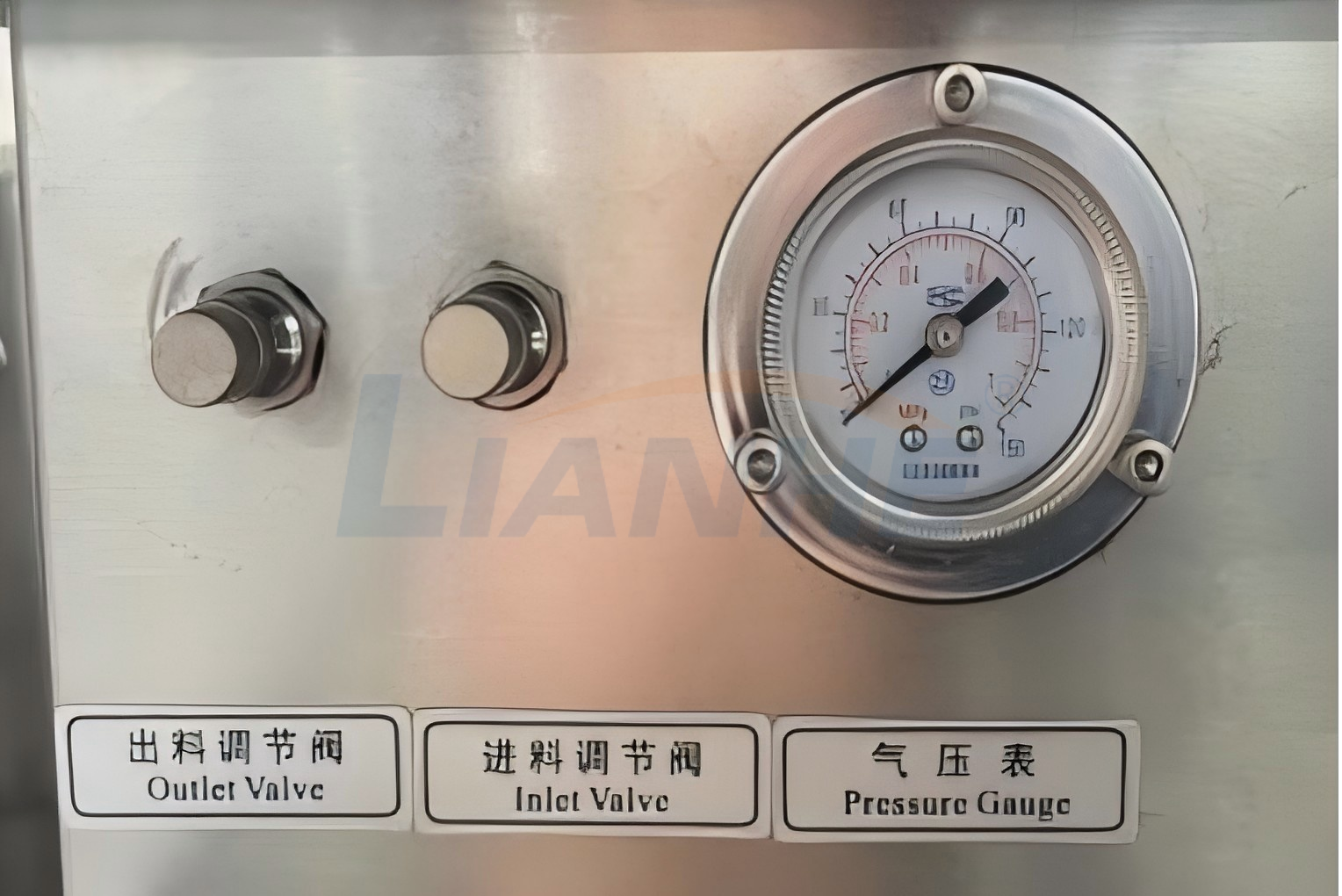

  Adjustable filling speed and Pressure gauge

1. Filling range: 10-250ml
2. Hopper volume: 30L
3. Power supply voltage: single-phase 220V/50Hz
4. Heating power: 5KW
5. Blending power: 120W
6. Pump power: 100W, 220V/50Hz, 2800r/min
7. Working pressure: 4-6 kg/cm2
8. Air consumption: 23 L/min
9. Filling speed: 25-50 bottles/min (depending on the filling volume)
10. Filling accuracy: ±0.5%
11. Heating temperature: 0-100℃
12. With movable wheels.

1. Ideal for filling heated skincare products such as creams, lotions, and gels.
2. Widely used for filling paste-based daily chemical products like shampoo and facial cleanser.
