Semi-Automatic Horizontal Filling Machine

This is a piston filling machine designed for low-viscosity liquid products such as liquid soap, laundry detergent, shower gel, shampoo, and similar items. Powered entirely by compressed air, its fully pneumatic design also makes it suitable for filling alcohol-containing products. It can be directly connected to a storage tank for continuous filling.

•

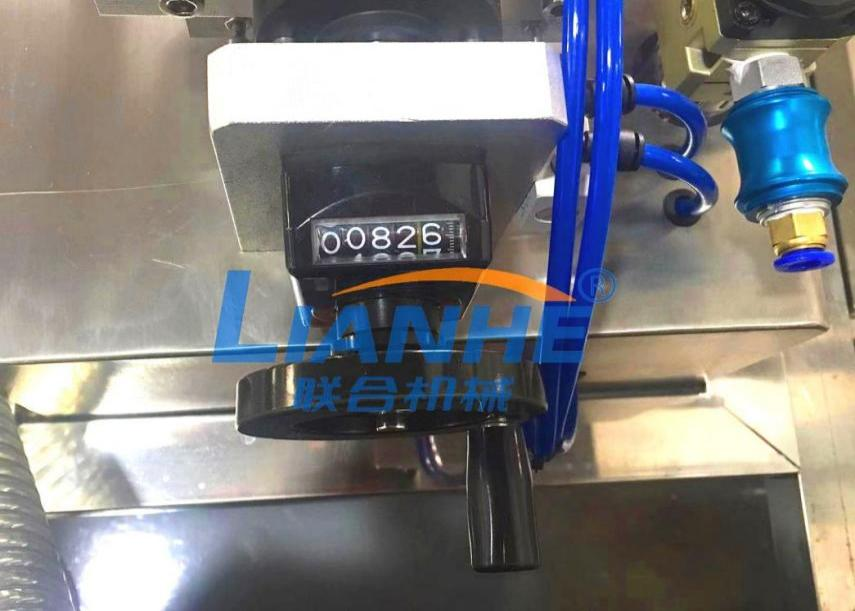

  Precise adjustment of filling volume

•

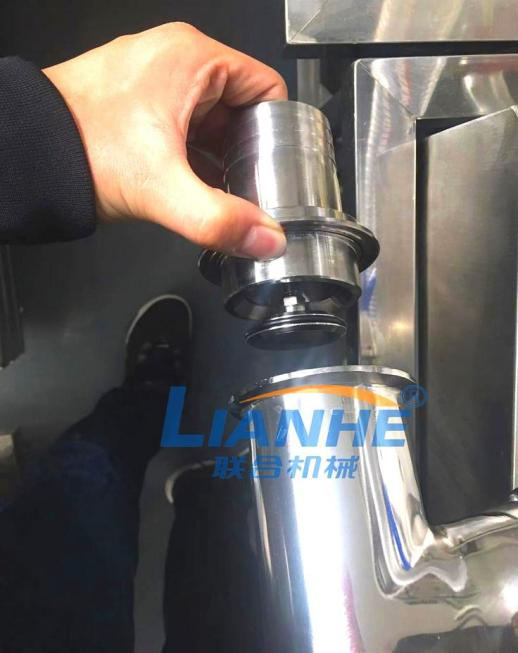

  Teflon piston

•

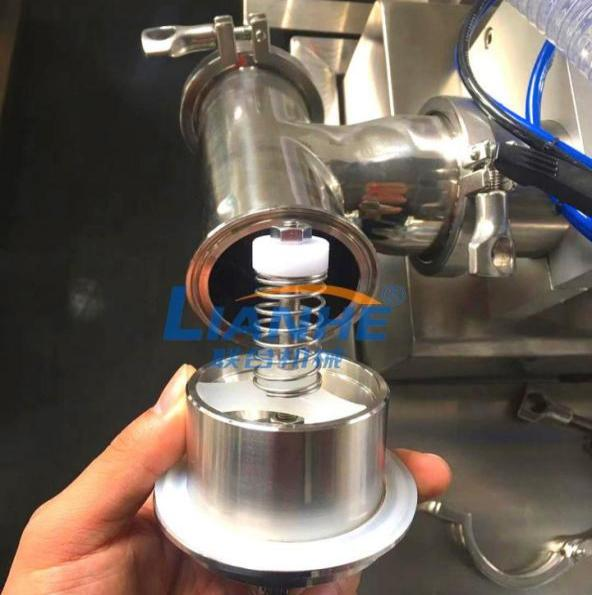

  Anti-corrosion&alkali-resistant rubber ring

•

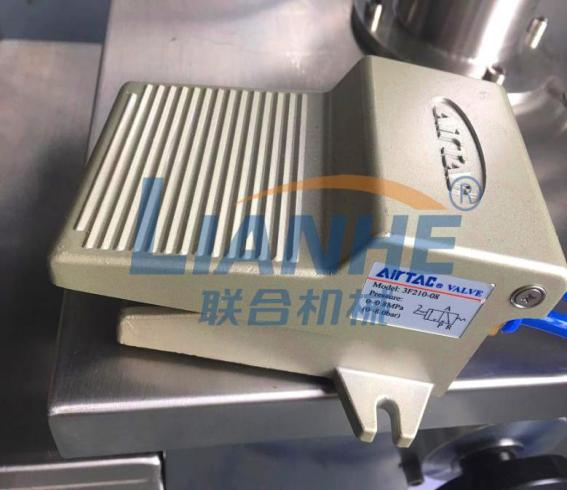

  Foot control filling, easy operation

1. Model No.: LH-SF5000
2. Filling range: 500-5000ml
3. Filling speed: 20-30 bottles/min
4. Filling accuracy: 0.5%-1%
5. Material: SUS 304
6. Working pressure: 0.4-0.6Mpa

1. Ideal for filling flowable creams, shampoos, and shower gels in the cosmetics industry.
2. Widely used for filling household cleaning products such as laundry detergent, dish soap, and hand wash.
