Semi Automatic Labeling Machine(Round Bottle Type)

This equipment is specially used for labeling round bottles with precise labeling. Imported high-precision electric eye and program controller are used to control the synchronous motor, which can be labeled on one side or on both sides.

•

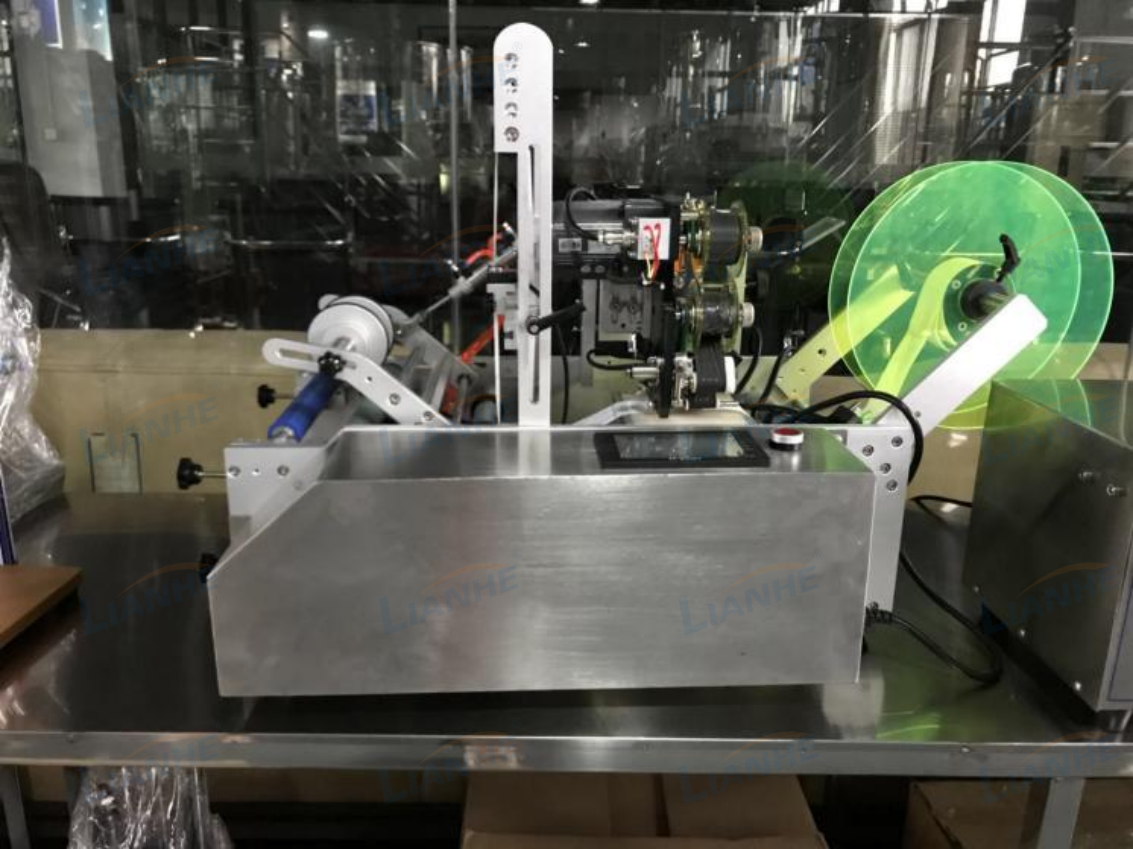

  Machine assembly drawing

•

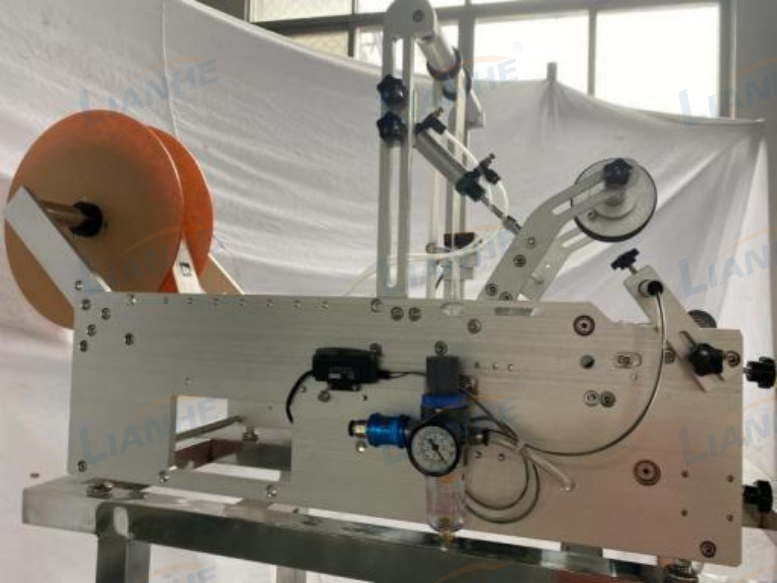

  Deatails of the machine

•

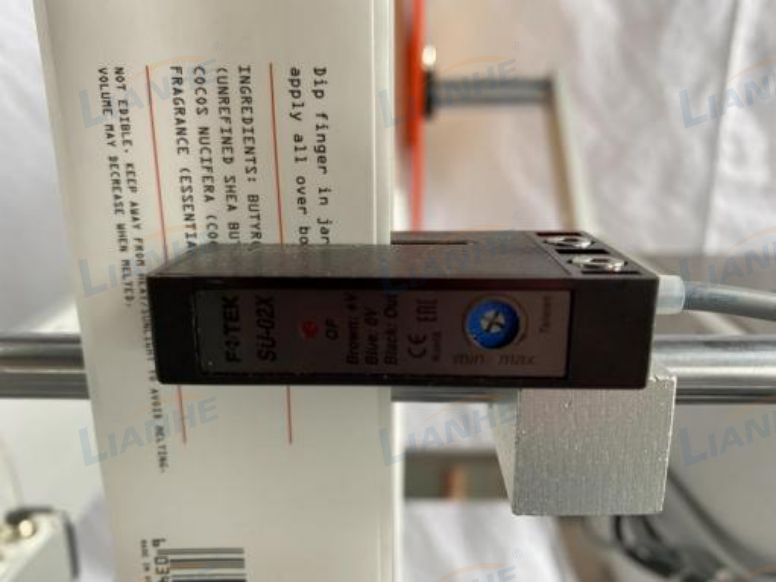

  High-precision electric eye

•

  Taiwan AIRTIC pneumatic components

1. Power supply voltage: 220 V/50 Hz
2. Power consumption: 120W
3. Labeling speed: 25-50 bottles/min
4. Labeling accuracy: ±5 mm
5. Maximum label width: 150 mm
6. Applicable bottle diameter: 10-150 mm

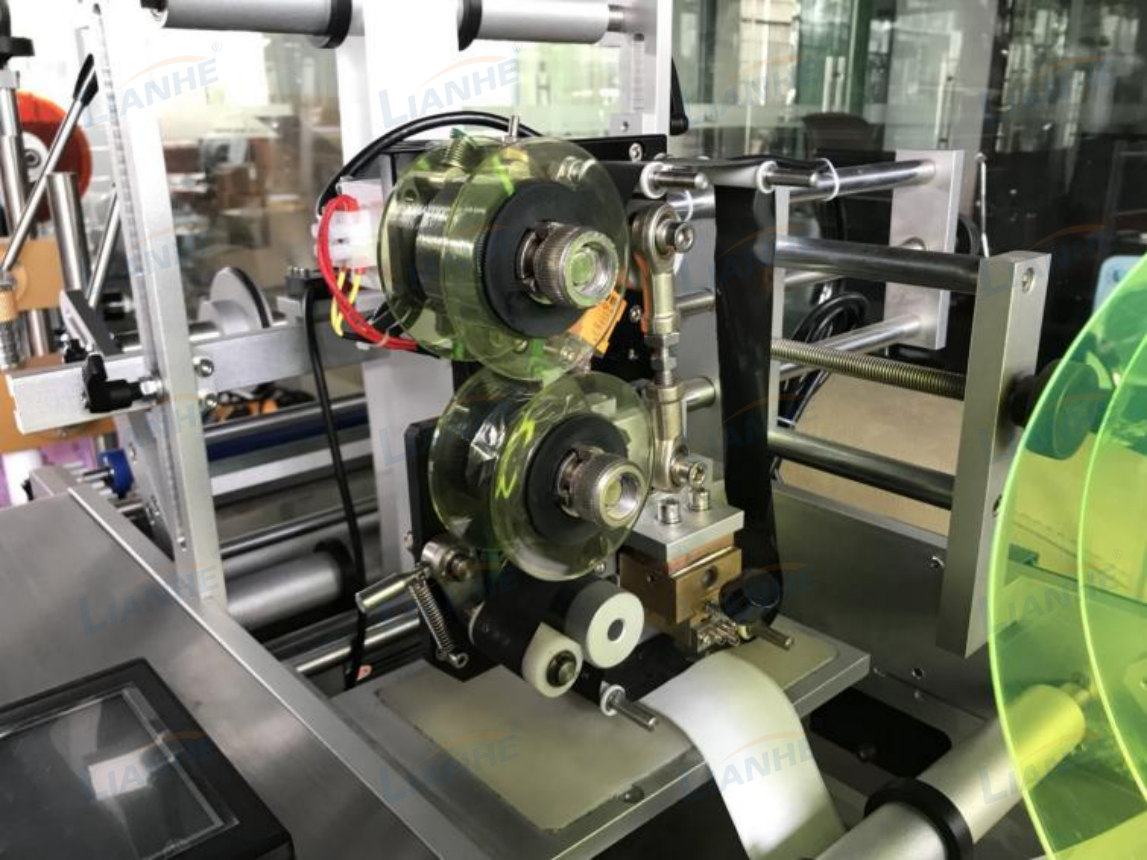

7. Including date printing

1. Ideal for labeling cylindrical cosmetic containers such as lotion or toner bottles, enhancing product presentation.
2. Widely used for labeling round bottles of shampoos, body washes, and liquid detergents.
