Trough Type Powder Mixer

This machine is a fully stainless steel horizontal ribbon mixer, which is used to mix powdered or pasty materials in pharmaceutical, chemical and food industries. The machine rotates mechanically to rotate the double S-type stirring paddles, pushing the materials to flip back and forth and evenly mix, thereby improving the mixing quality of each batch of materials.

•

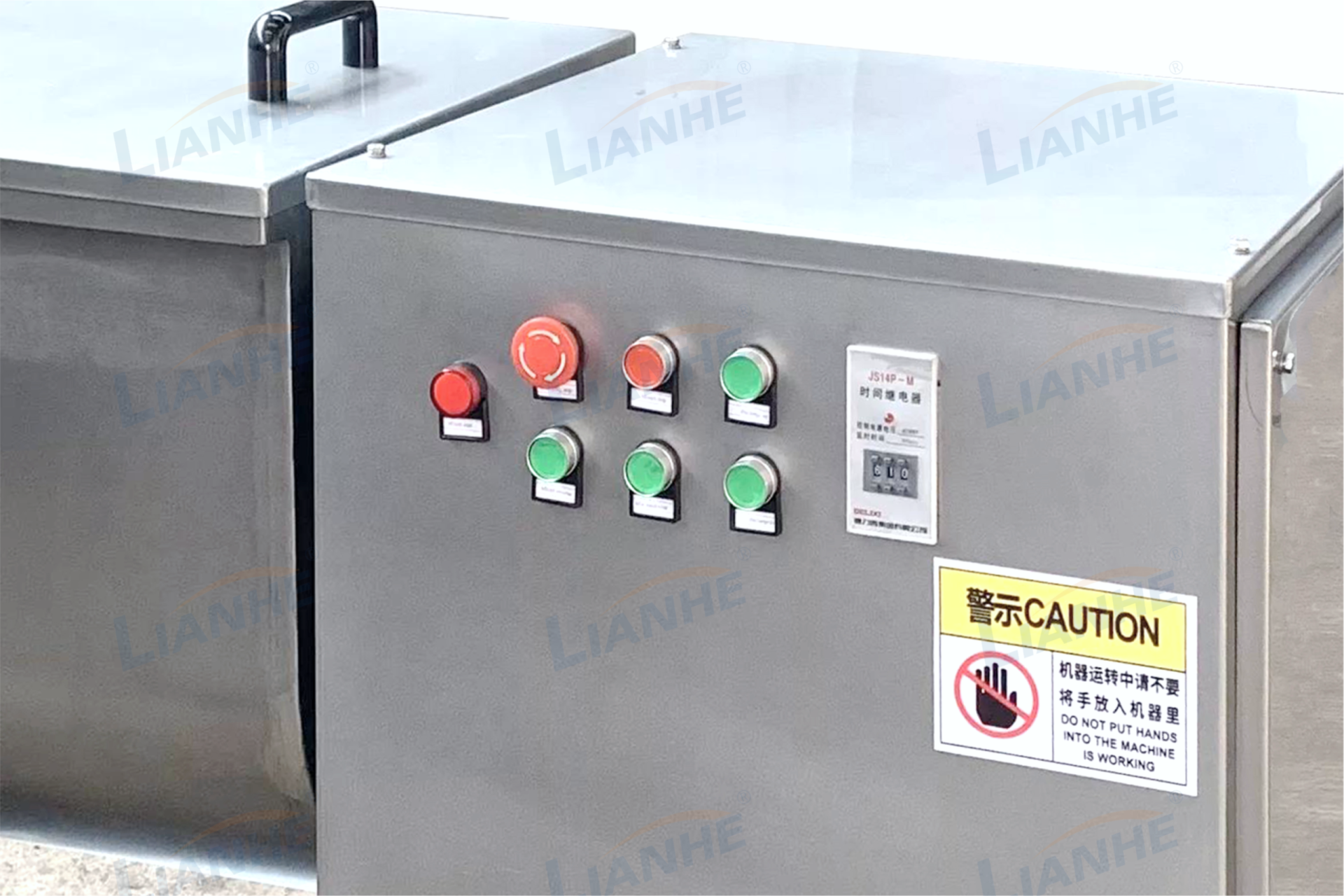

  Control Panel

•

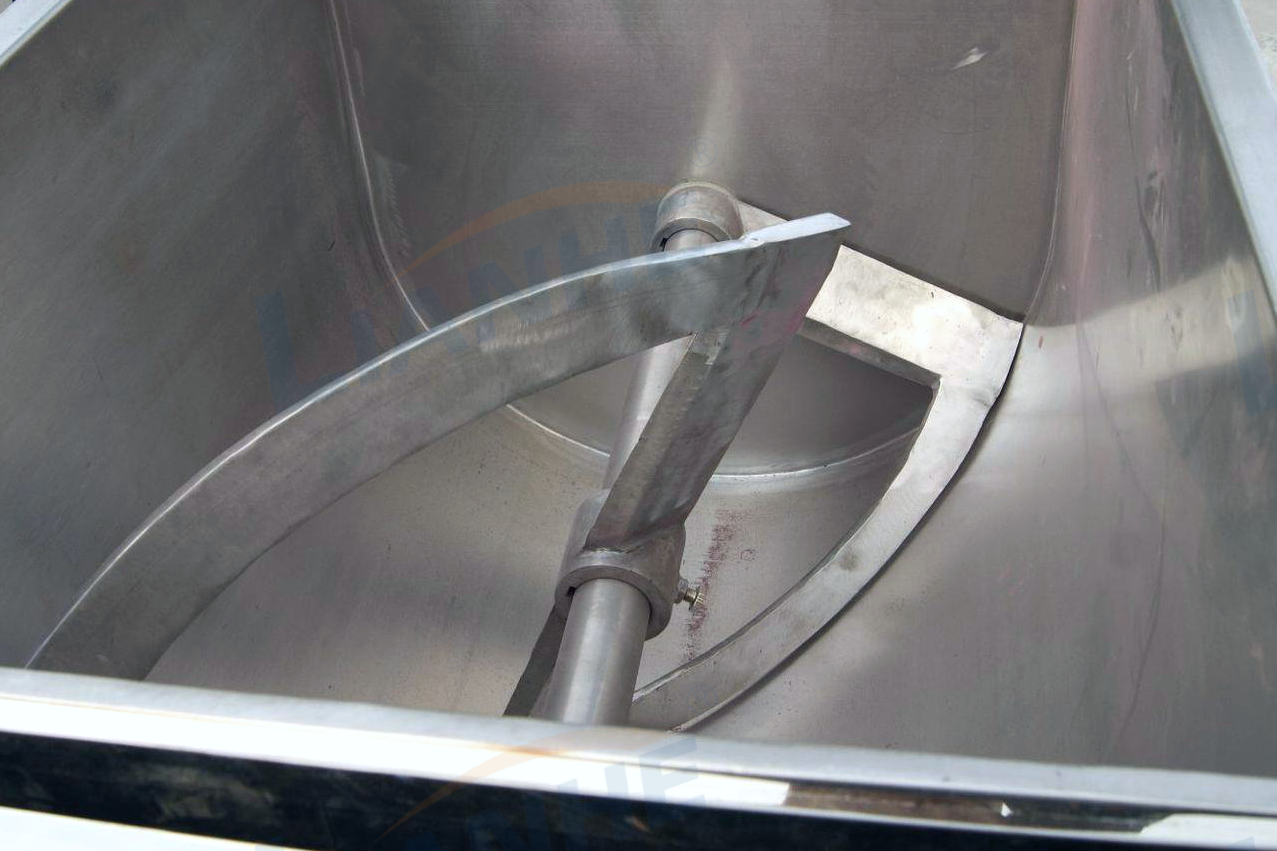

  Mixing Panel

1. Mixing cylinder: SUS304 s=4mm
2. Wall panel: Stainless steel 304 s=16mm
3. Wall panel reinforcement: A3
4. Motor reducer bearing seat support plate and support: A3
5. Mixer support seat: A3
6. Stirring gear motor: XWD11-7i =43 motor (Jiangyin large and medium-sized motor explosion-proof): 11Kw-4
7. Discharge butterfly valve: DN200 304
8. Mixing spindle: SUS304 Ø95×8
9. Mixing blade connecting rod: Ø38*4mm SUS304
10. Stirred screw belt: SUS304 s=10mm
11. Two-end connecting shaft: 45# ladle SUS304
12. bearing seat with bearing: UCP216
13. Seal seat and gland: ZG45#
14. Sealing disc: 16*16oil-impregnated asbestos packing/PTFE disc
15. barrel lid: SUS304 s＝2mm

1. It is widely used to mix powdered or pasty materials in pharmaceutical, chemical and food industries.
