Ultrasonic Rotary Type Filling & Sealing Machine

Ultrasonic rotary tube filling and sealing machine is a high-performance liquid and paste container filling and sealing machine, which adopts manual tube loading, automatic color mark detection, automatic filling, automatic sealing and automatic tail cutting, using PLC control, touch human-machine interface.

•

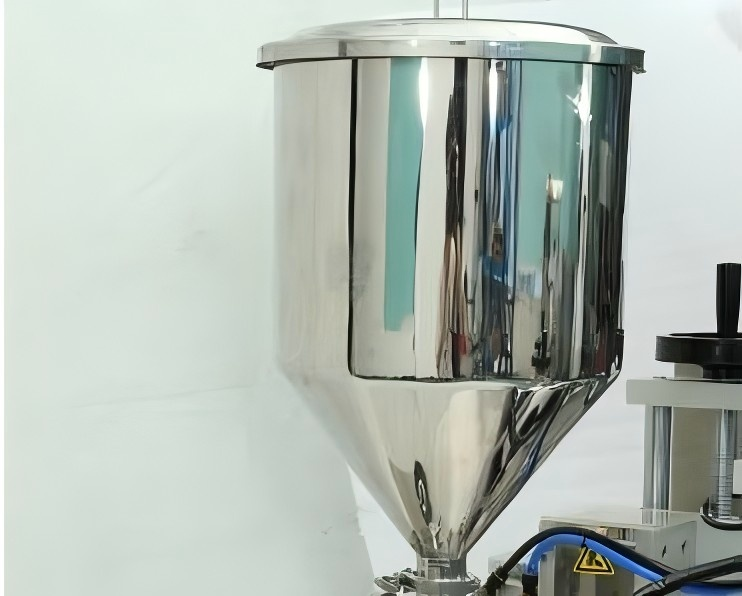

  Material Tank

•

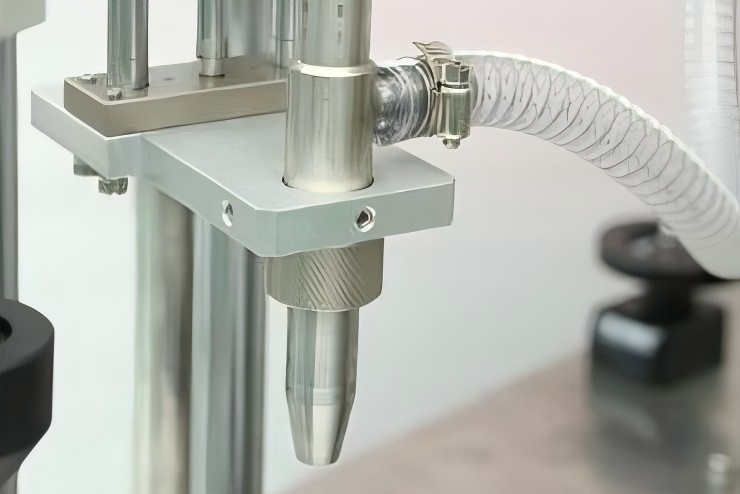

  Filling Detail

•

  Panasonic Color Mark Sensor

•

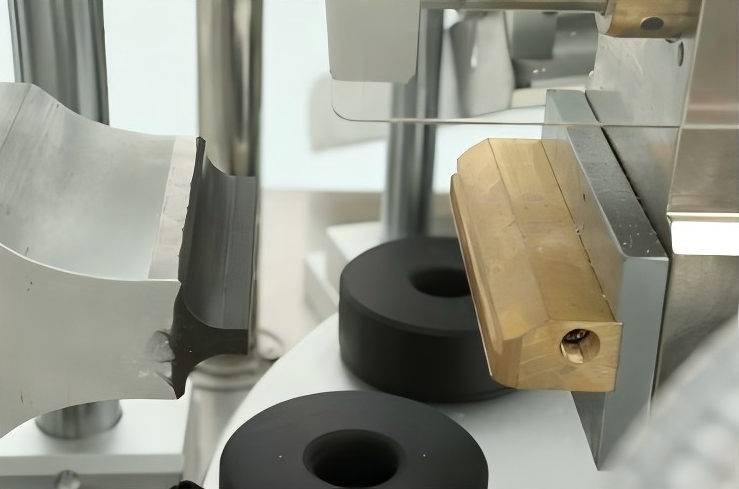

  Rigid oxidation Mould

1. Power supply: AC220V/110V single phase
2. Power: 2.6KW
3. Filling range: A: 6-60ml, B:10-120ml, C:25-250ml, D:50-500ml
4. Filling accuracy: ±1%
5. Sealing diameter.: 10-50mm
6. Max.height: 50-200mm
7. Capacity: 15-25 tubes/min
8. Air pressure: 0.6Mpa
9. Air consumption: 0.35m²/min
10. Hopper: 40L (Customer-made available)
11. Machine body: 304# stainless steel

1. It is an ideal filling equipment for daily chemical, pharmaceutical, food,pesticide and other industries. it’s suitable for filling corrosive liquid like toilet cleaner,bleach, strong acid liquid etc.
