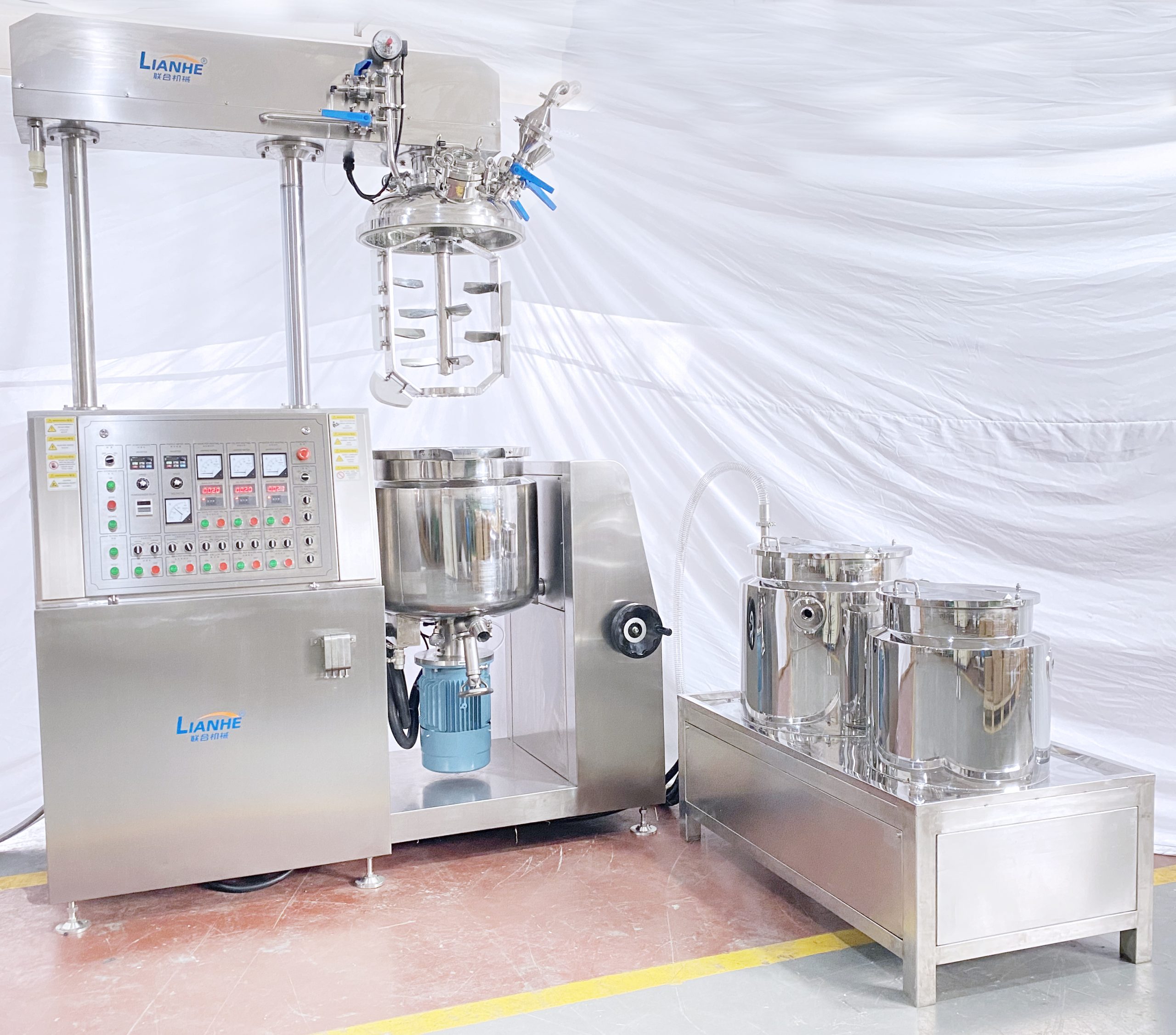

VME-A-100L
Vacuum Emulsifying Mixer

Vacuum emulsifying mixer refers to the rapid and uniform distribution of one or more phases of the material into another continuous phase by a high shear emulsifier under vacuum. Due to the powerful kinetic energy of the machine, the material undergoes hundreds of thousands of hydraulic shear times per minute in the narrow gap between the stator and rotor. Under the combined action of centrifugal extrusion, impact, tearing and turbulence, the material can be uniformly dispersed and emulsified instantly. After high frequency cycle, finally get no bubble, fine, stable quality of the finished product.

1. DELTA frequency converter for speed adjustment, which can meet production of different technology requirement.
2. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust.
3. Mechanical sealing, good sealing effect and long working life.
4. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
5. Material contact parts all use SUS316L stainless steel.
6. The heating method mainly include electric or steam heating for customer’s choice.
7. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

•

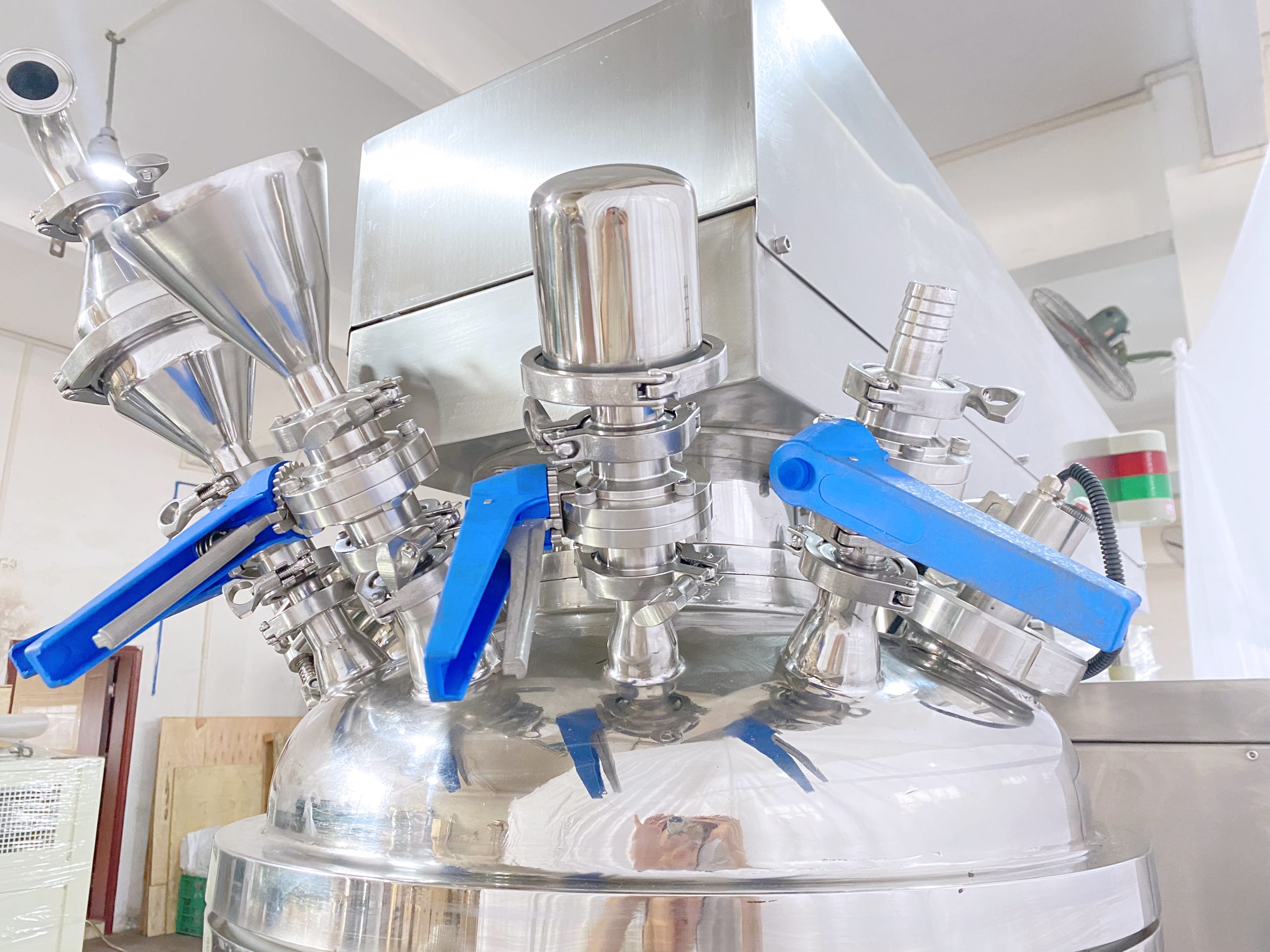

  Top Accessories

  Ensure safety seal, aid in ingredient addition, facilitate easy cleaning

•

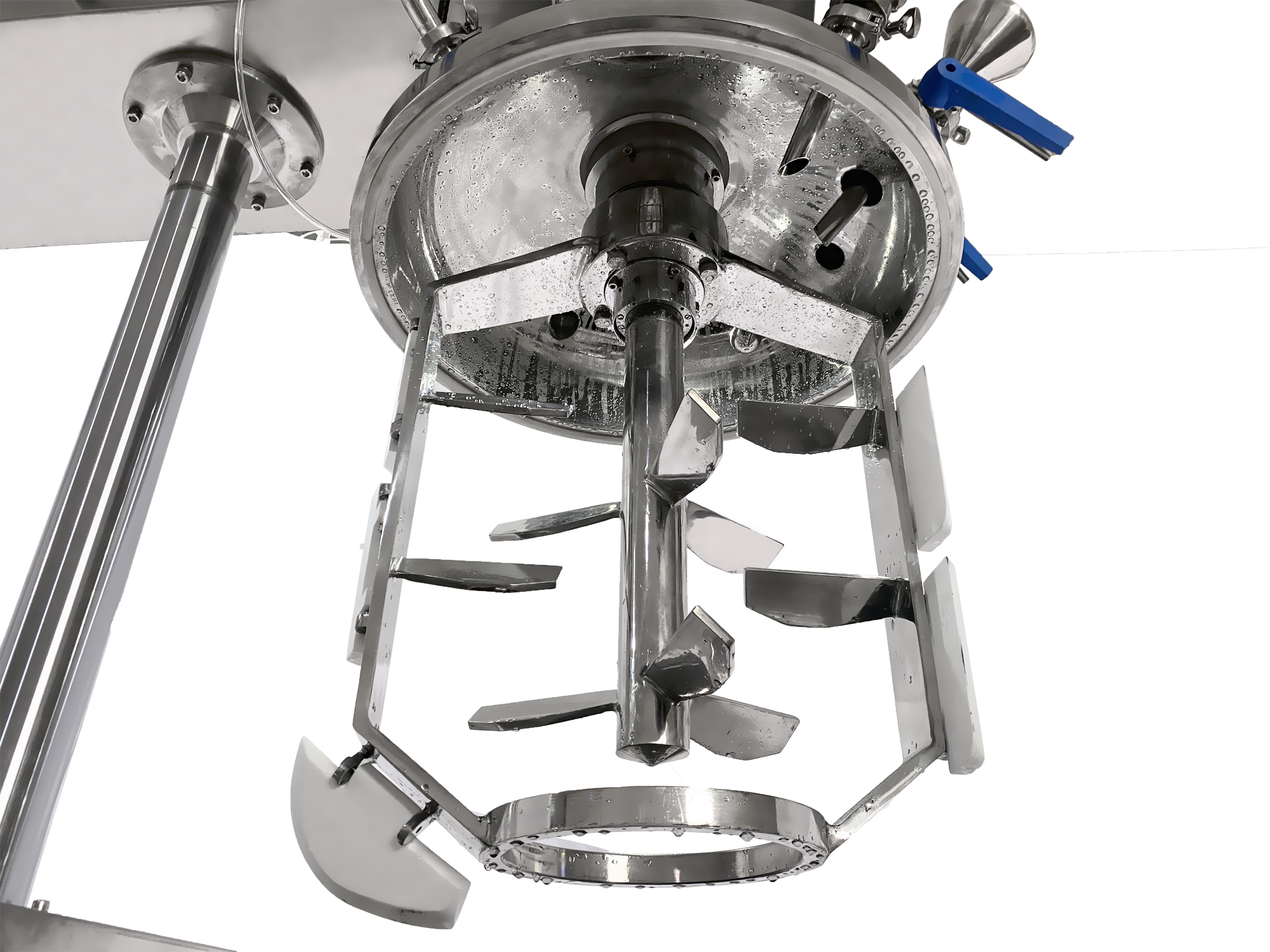

  Efficient bidirectional mixing

  Without cleaning dead zones, uniform material dispersion

•

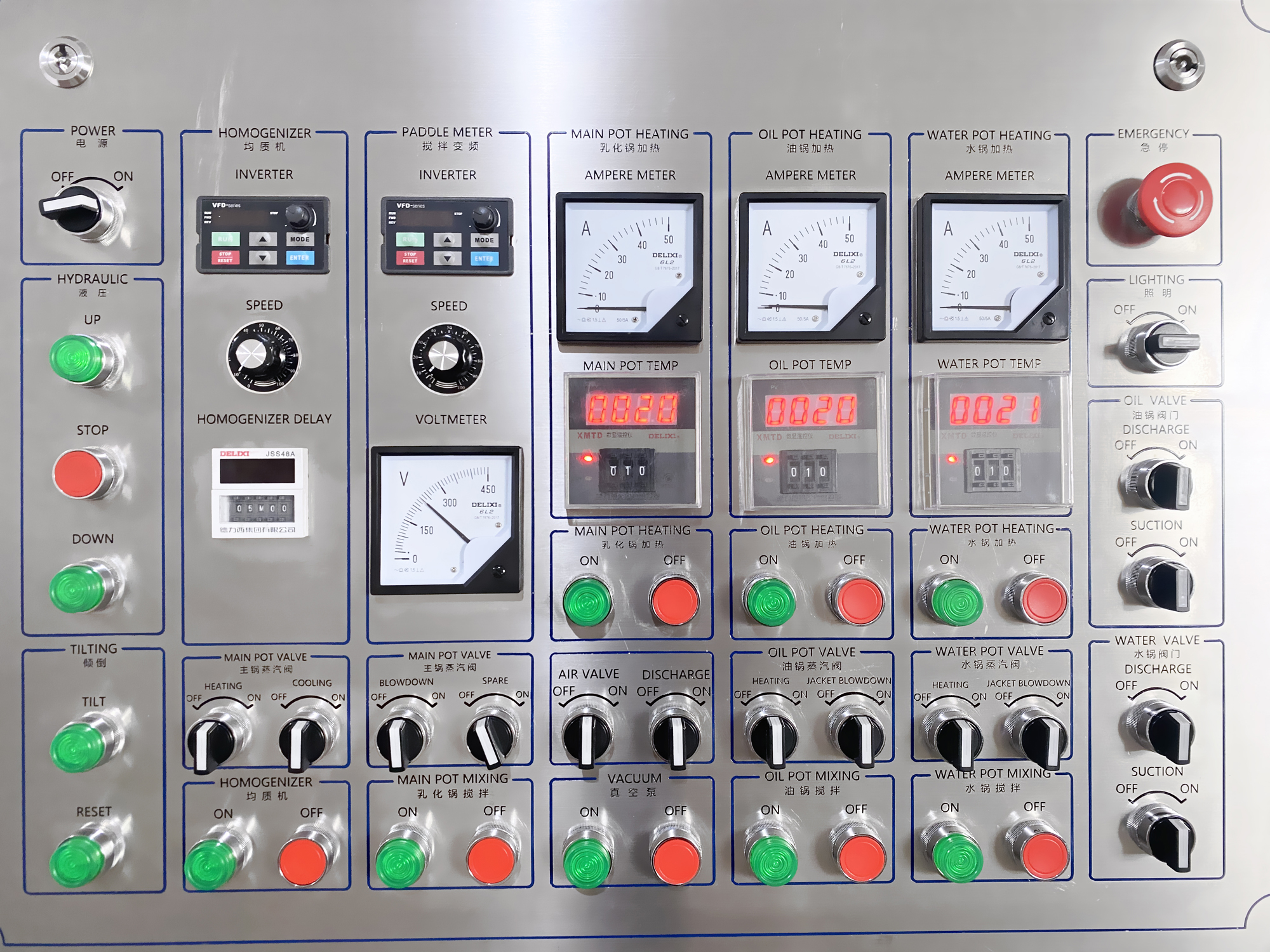

  Button control

  Precise operation control

•

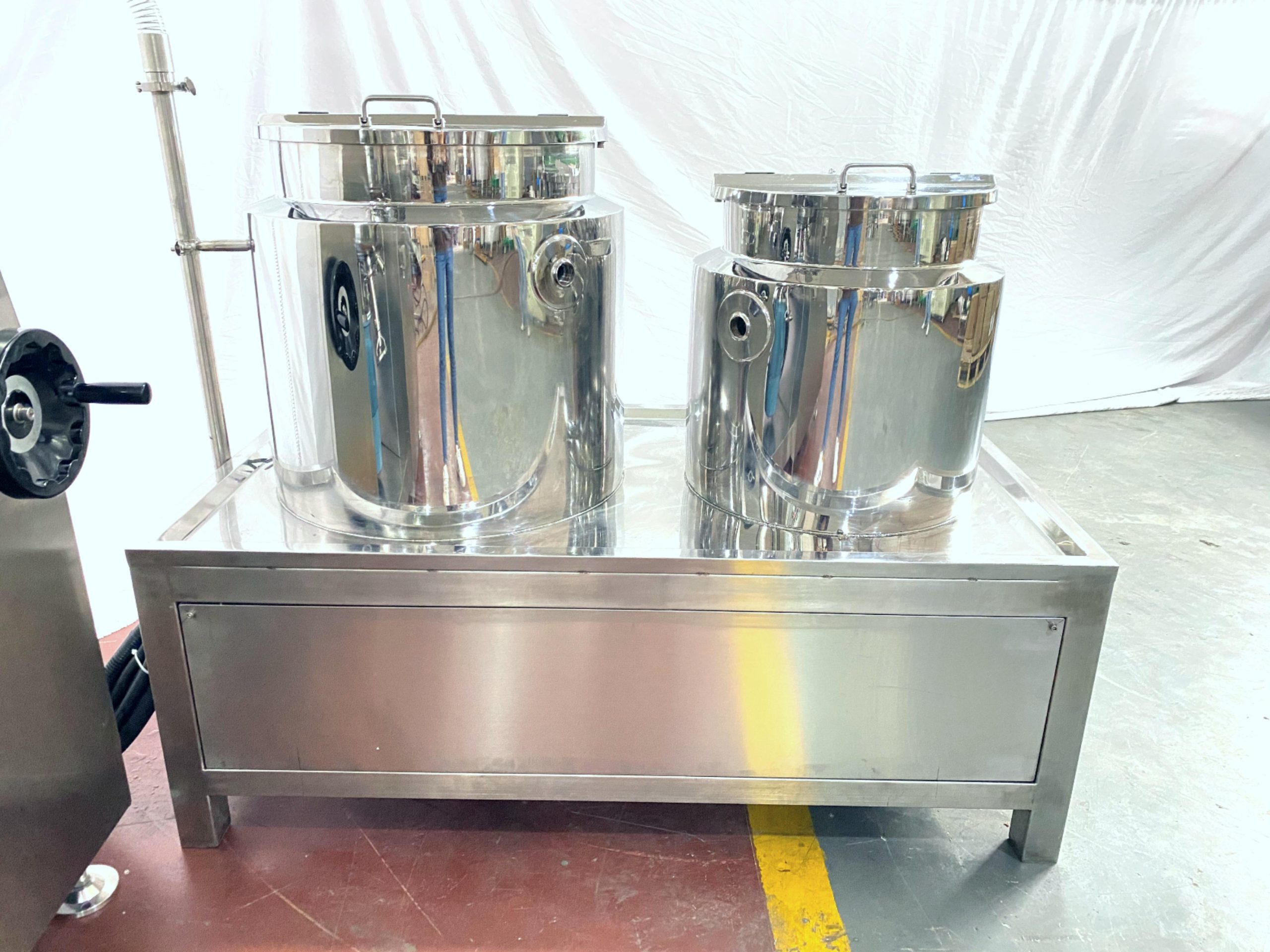

  Water & Oil Tank

  Fast raw materials pretreatment

1. Material：SUS316L/SUS304
2. Function：Mixing, heating, homogenizing and vacuum
3. Brand Name：LIANHE
4. Mixing Speed：0~63r/min
5. Homogenizing speed：0~3000r/min
6. Certification：CE ISO SGS GMP

1. Cosmetics Industry
– Creams, lotions, serums, and other emulsion-based products
– Shampoos, body washes, and other personal care products
– Sunscreens, BB creams, and other specialty products

2. Pharmaceutical Industry
– Ointments and topical preparations
– Vaccines, injectables, and sterile products
– Medical emulsions, gels, and special formulations

3. Food Industry
– Sauces, dressings, and condiments
– Dairy products like cream and chocolate
– Functional foods and nutritional supplements

4. Chemical Industry
– Industrial adhesives and sealants
– Coatings, inks, and surface treatment materials
– Lubricants, cutting fluids, and other industrial liquids

5. Daily Chemical Industry
– Toothpaste, hand soap, and other household products
– Detergents, disinfectants, and hygiene products
– Fragrances, flavors, and additives

6. Research & Development
– New material development
– Lab-scale and pilot-scale trials
– Process optimization and innovation
