Material: SUS316L, SUS304
Function: Mixing, heating, homogenizing and vacuum
Brand Name: LIANHE
Mixing Speed:0~63r/min
Homogenizing Speed: 0~3000r/min
Certification: CE /SGS/ISO/GMP

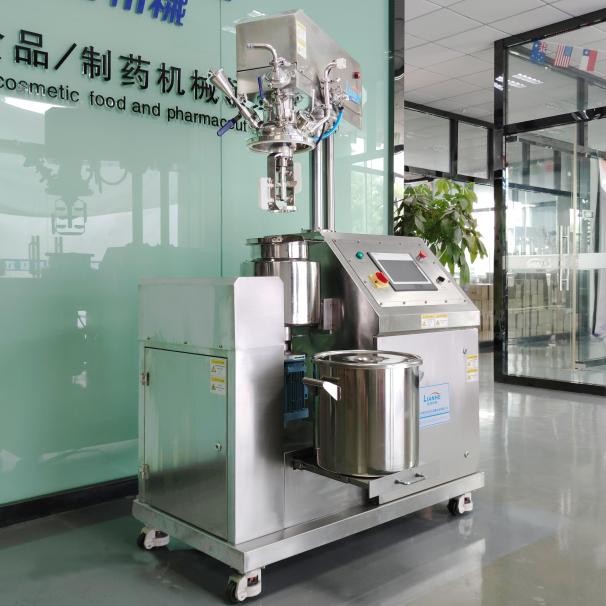

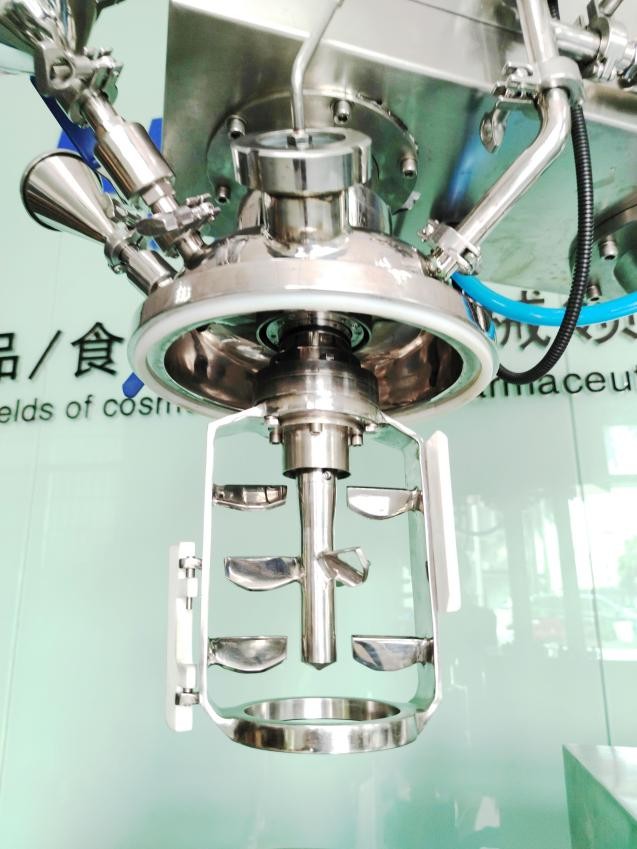

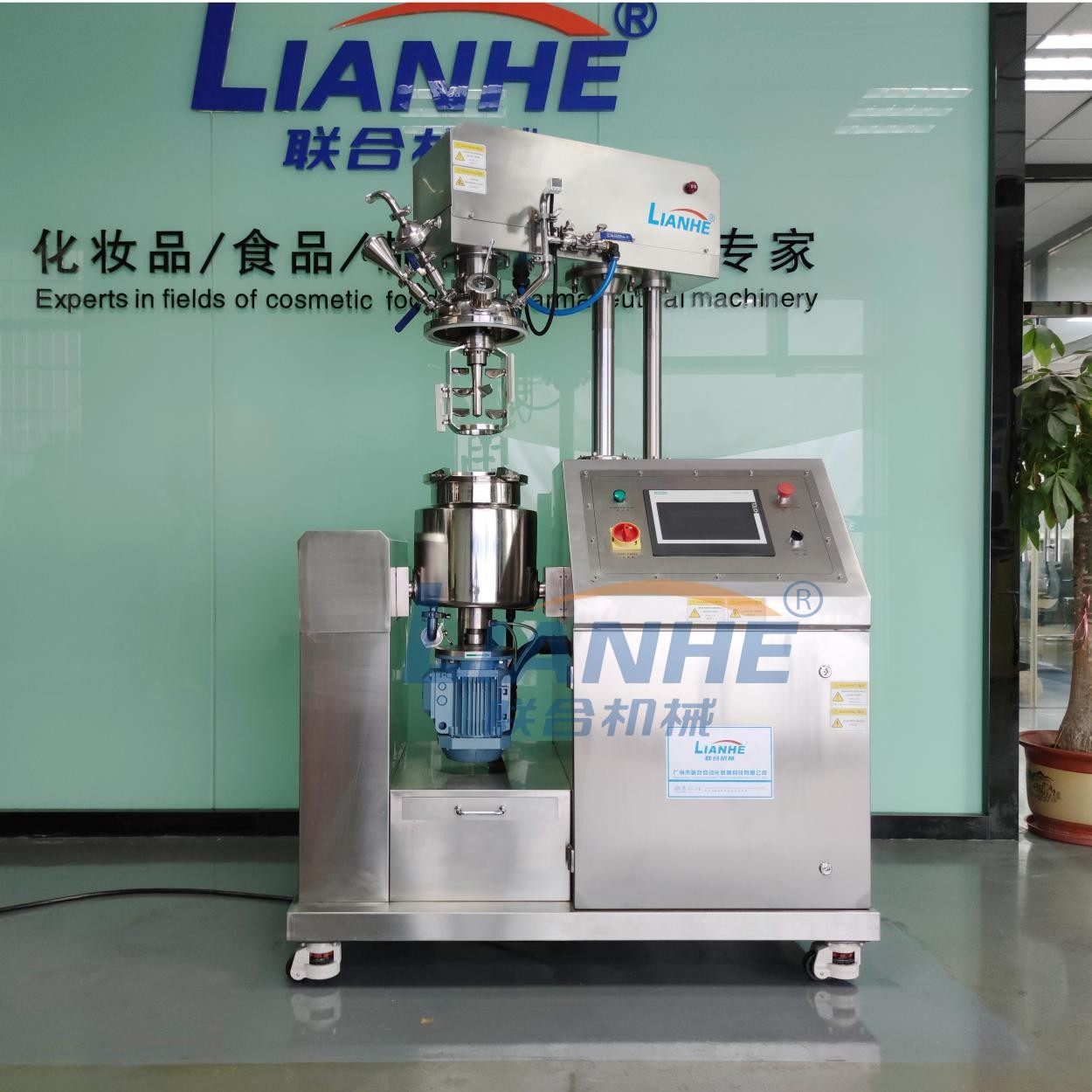

Vacuum Emulsifier consists of emulsifying mixing tank, water tank, oil tank, hydraulic lifting system, control system, homogenizer, mixing system and vacuum system. When the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will achieved.
1. SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement.
2. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust.
3. Mechanical sealing, good sealing effect and long working life.
4. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
5. Material contact parts all use SUS316L stainless steel.
6. The heating method mainly include electric or steam heating for customer’s choice.
7. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
Directly welding free of head corner

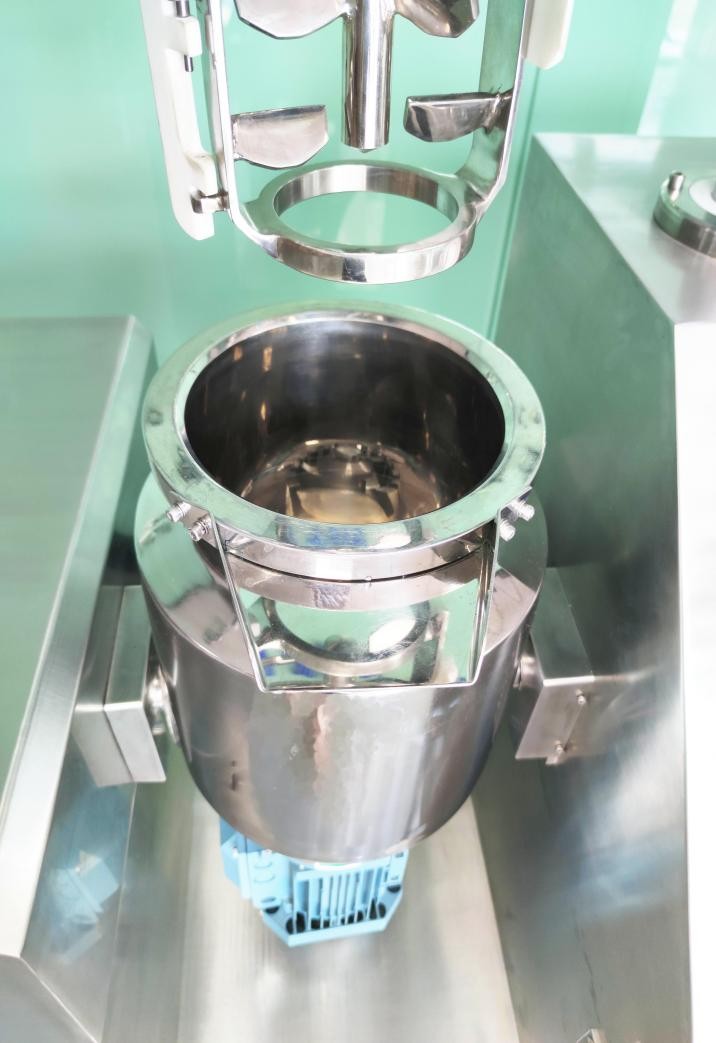

Material contact parts all use SUS316L

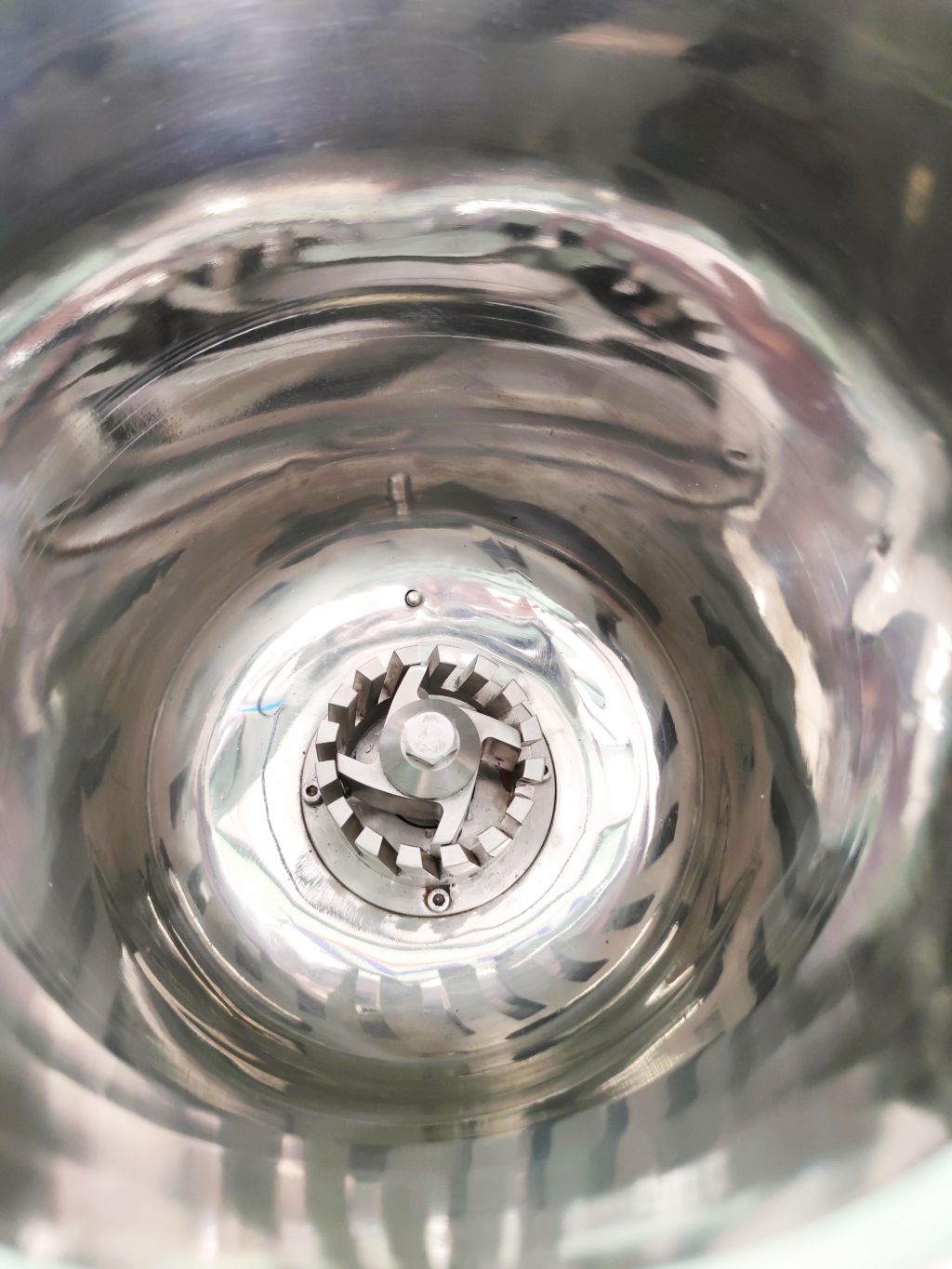

With fast speed up to 3000rpm

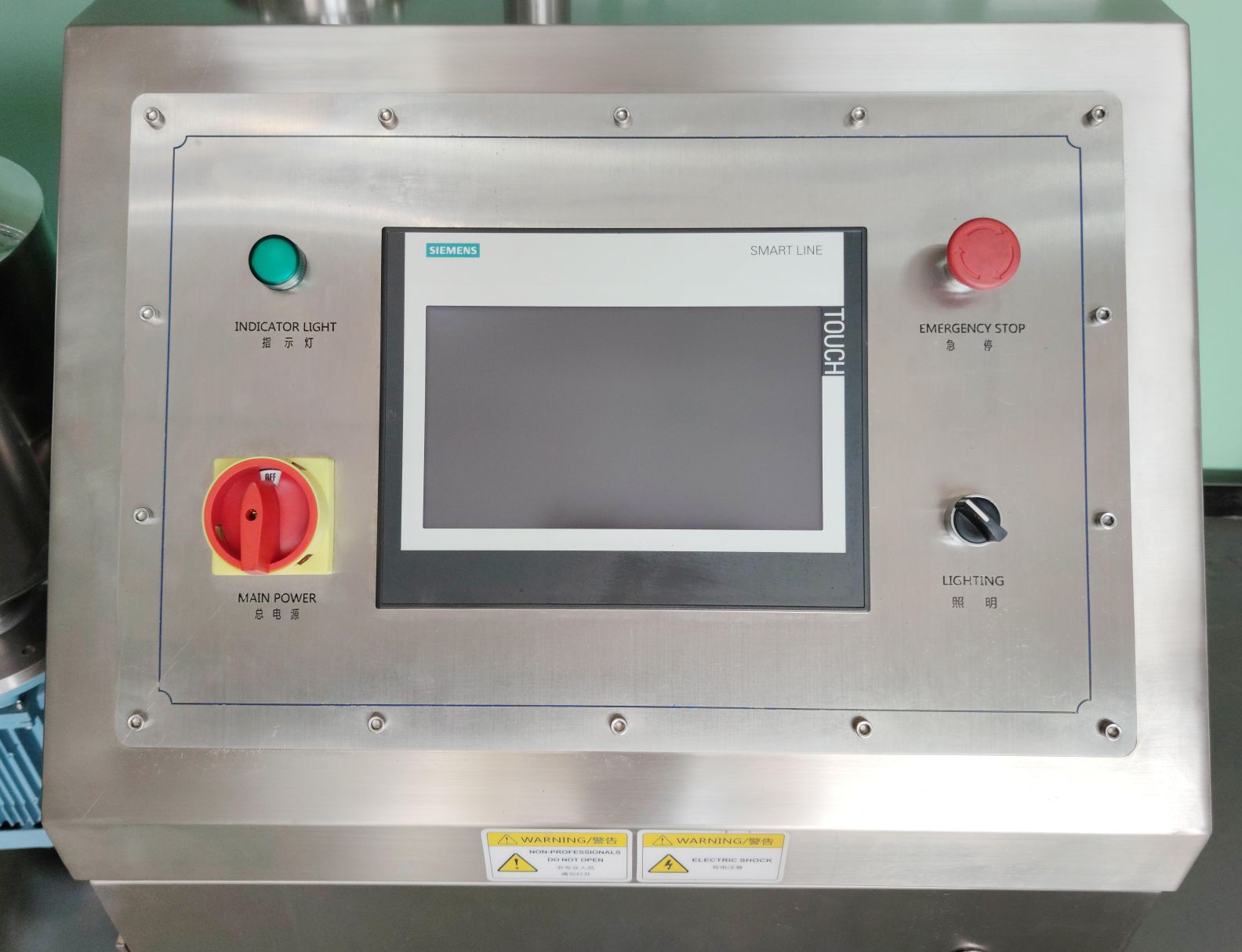

Easy to operate, neatly arranged
1. Cosmetics Industry
– Creams, lotions, serums, and other emulsion-based products
– Shampoos, body washes, and other personal care products
– Sunscreens, BB creams, and other specialty products
2. Pharmaceutical Industry
– Ointments and topical preparations
– Vaccines, injectables, and sterile products
– Medical emulsions, gels, and special formulations
3. Food Industry
– Sauces, dressings, and condiments
– Dairy products like cream and chocolate
– Functional foods and nutritional supplements
4. Chemical Industry
– Industrial adhesives and sealants
– Coatings, inks, and surface treatment materials
– Lubricants, cutting fluids, and other industrial liquids
5. Daily Chemical Industry
– Toothpaste, hand soap, and other household products
– Detergents, disinfectants, and hygiene products
– Fragrances, flavors, and additives
6. Research & Development
– New material development
– Lab-scale and pilot-scale trials
– Process optimization and innovation
